  9. Mounting Base, Square D QO, QO GFI and QO EPD Circuit Breakers Use With, 120/240V AC, 70A

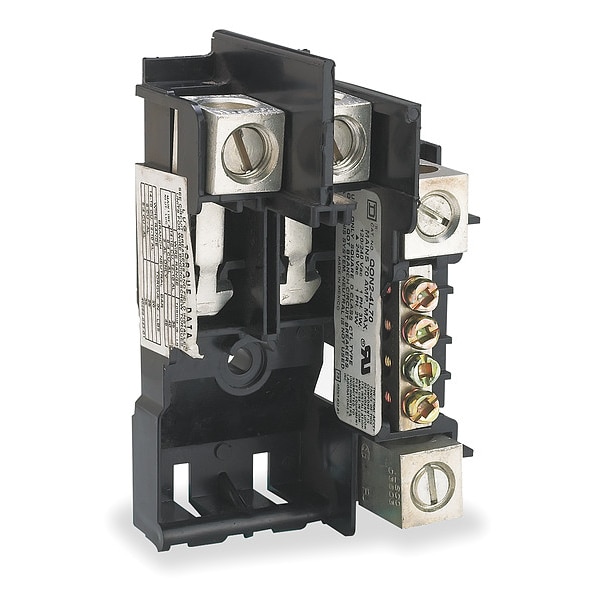

Square D Mounting Base, Square D QO, QO GFI and QO EPD Circuit Breakers Use With, 120/240V AC, 70A QON24L70 - main

Mounting Base, Square D QO, QO GFI and QO EPD Circuit Breakers Use With, 120/240V AC, 70A

  • Mfr # QON24L70

  • Zoro # G1206931

product price: $48.55
/ea

Key Features

For Use With
Square D QO, QO GFI and QO EPD Circuit Breakers
Voltage
120/240V AC
Amps
70A
Number of Poles
2
Max. Wire Size
AWG 4 copper ||AWG 3 aluminium
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QON24L70
Zoro #
G1206931
UPC #
785901804598
Country of Origin
Mexico

Dimensions

Max. Wire Size
AWG 4 copper ||AWG 3 aluminium
Min. Wire Size
AWG 14, AWG 12
Width
4.2 in
Height
34 mm
Depth
1.35 in

Details

Item
Mounting Base
For Use With
Square D QO, QO GFI and QO EPD Circuit Breakers
Voltage
120/240V AC
Amps
70A
Number of Poles
2
Short-Circuit Current
10 kA
Wiring Configuration
3-wire
Awg Gauge
AWG 14...AWG 4 copper || AWG 12...AWG 3 aluminium
Line Rated Current
70 A
Net Weight
1.400 kg
Load Center Type
main lugs
[Ue] Rated Operational Voltage
120/240 V AC
Number Of Spaces
2
Phase
1 phase

Description

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 70A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 2 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.
