This item is Discontinued.

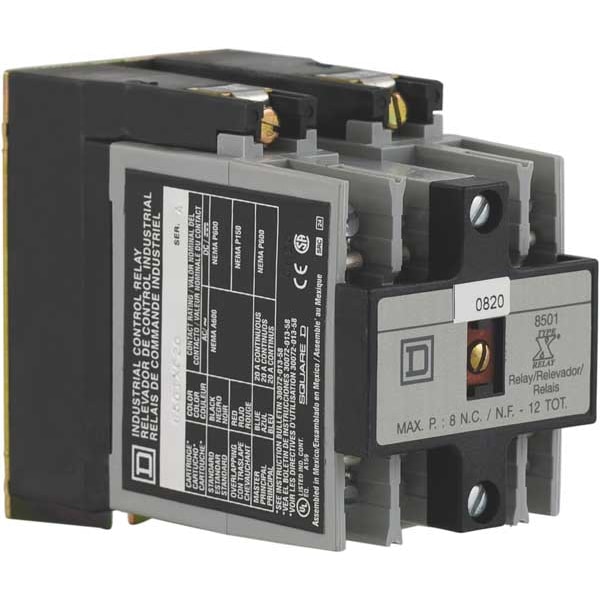

Square D NEMA Control Relay, 2NO, 24VAC, 10A 8501XO20V01

NEMA Control Relay, 2NO, 24VAC, 10A (Discontinued)

  • Mfr # 8501XO20V01
  • Zoro # G1998717
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501XO20V01
Zoro #
G1998717
UPC #
785901536932
Country of Origin
Mexico

Dimensions

Body Width - Relay
2.23 in
Overall Height - Relay
3.5 in
Body Height - Relay
3.5 in
Body Depth - Relay
3.95 in
Depth
3.95 in
Width
2.23 in
Height
3.5 in
Lead Size
18 AWG
Body Depth
3.95 in
Body Width
2.23 in
Overall Height
3.5 in
Body Height
3.5 in

Details

Item
NEMA Control Relay
Coil Volts
24V AC
Hz
60
Power Consumption - Relay
23.0 VA
Mounting
Panel
Hz - Electrical
60 Hz
Contact Material
Silver Cadmium Oxide
DC Contact Rating - Relay
5A @ 125/250V
Mounting - Relay
Surface
Contact Form - Relay
(2) SPST-NO
Item - Relay
NEMA Style Control Relay
Features
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Accessory Group
A
Contact Amp Rating (Resistive)
10A
Standards
CSA Certified, RoHS Compliant, UL Listed
Response Time
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
AC Contact Rating - Relay
10A @ 120/240/480/600V
Number of Pins - Relay
6
Contact Form
2NO
Control Circuit Voltage Limits
operational 0.85 to 1.1 Uc AC 60 Hz
Inrush Power In Va
148-148 VA 60 Hz
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Product Certifications
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Hold-In Power Consumption In Va
23-23 VA 60 Hz
Line Rated Current
10 A AC || 5 A DC
Operating Time
15 ms - pick-up || 16 ms - drop-out
Relay Type
control
Contacts Type And Composition
2 NO 2 standard contact cartridges
Awg Gauge
AWG 18 to AWG 12 copper
Ambient Air Temperature For Operation
-40-160 °F
Mounting Support
panel
Electrical Connection
Screw Clamp
[Uc] Control Circuit Voltage
24 V AC 60 Hz
Product Or Component Type
relay
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Relay Style
NEMA
Frequency
60 Hz
Mounting Style
Surface
Minimum Operating Temperature
-40 Degrees F
Current Rating
10 A
Contact Rating (AC)
10 A @ 600V
Coil Voltage
24V AC
Compatible with Series
8501 Type X Latching Control Relays
Input Voltage
24V AC
Number of Pins
6
Contact Rating (DC)
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Maximum Operating Temperature
160 Degrees F
Power Consumption
23 VA
Weight
2.0 lbs.
Certifications
CSA LR60905 class 3211 03; UL listed file E78403 CCN NKCR
Operating Temperature
-40 to 160°F (-40 to 71°C)
Rated Short Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508

Description

NEMA Control Relay, Current Rating 10 A, Contact Form 2NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 24V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 60 Hz, Body Depth 3.95 in, Body Height 3.5 in, Body Width 2.23 in
