  6. NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 277 VAC 60 Hz coil

This item is Discontinued.

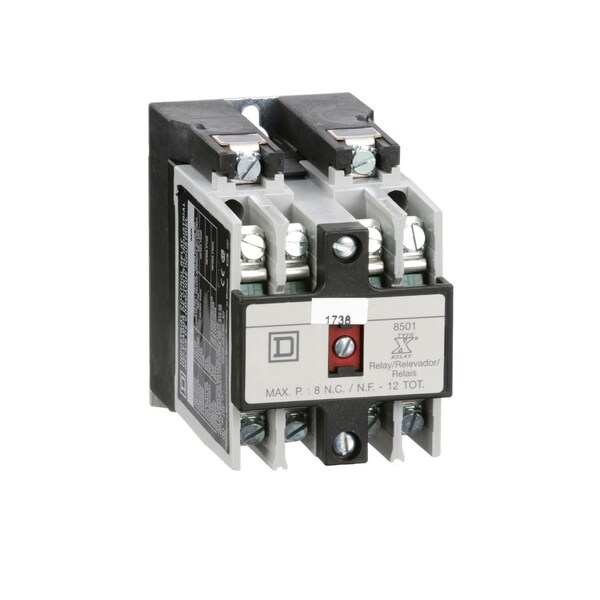

Square D NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 277 VAC 60 Hz coil 8501XO40V04

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 4 normally open contacts, 277 VAC 60 Hz coil (Discontinued)

  • Mfr # 8501XO40V04
  • Zoro # G5524882
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
8501XO40V04
Zoro #
G5524882
UPC #
785901018407
Country of Origin
Mexico

Dimensions

Depth
3.95 in
Height
3.5 in
Width
2.23 in

Details

Item
NEMA Control Relay,machine tool,4 NO,
Relay Type
control
[Uc] Control Circuit Voltage
277 V AC 60 Hz
Tightening Torque
control circuit 1.02-1.36 N.m screw terminals
Electrical Connection
screw clamp terminals
Contacts Type And Composition
4 NO 4 standard contact cartridges
[Icm] Rated Short-Circuit Making Capacity
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Mounting Support
panel
Rated Breaking Capacity
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
Product Certifications
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Product Or Component Type
relay
Hold-In Power Consumption In Va
23-23 VA 60 Hz
Ambient Air Temperature For Operation
-40-160°F
Control Circuit Voltage Limits
operational 0.85...1.1 Uc AC 60 Hz
Inrush Power In Va
148-148 VA 60 Hz
Operating Time
15 ms - pick-up || 16 ms - drop-out
Awg Gauge
AWG 18...AWG 12 copper
Line Rated Current
10 A AC || 5 A DC
Range of Product
8501X

Description

NEMA Control Relay,machine tool,4 NO,
