Product Information
MFR #
8502SCO2V01S
Zoro #
G3575954
UPC #
785901459026
Country of Origin
Mexico
Dimensions
Height
110.24 mm
Width
81.79 mm
Depth
107.19 mm
Nema Size
1
Details
Item

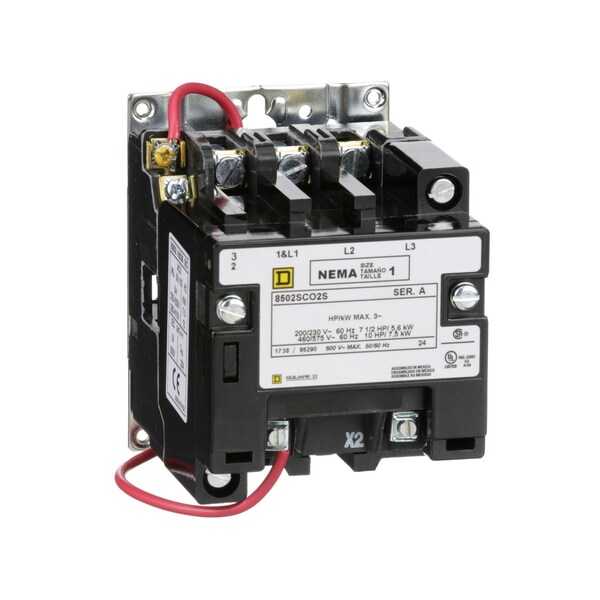

Non-Reversing Contactor,Size 1,3-Pole,
Contactor Application
non-reversing
Phase
3 phase
Line Rated Current
27 A
[Ue] Rated Operational Voltage
600 V AC
Control Circuit
separate control circuit
Control Type
no control units
Product Compatibility
circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
[Uc] Control Circuit Voltage
24 V AC 60 Hz
Poles Description
3P
Product Or Component Type
contactor
Electrical Connection
screw clamp terminals
Rated Power In Hp
7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC
Auxiliary Contact Composition
without
Local Signalling
no indicator
Nema Degree Of Protection
not rated (open device)
Product Certifications
UL listed file E78351 CCN NLDX || CSA
Description
Non-Reversing Contactor,Size 1,3-Pole,
