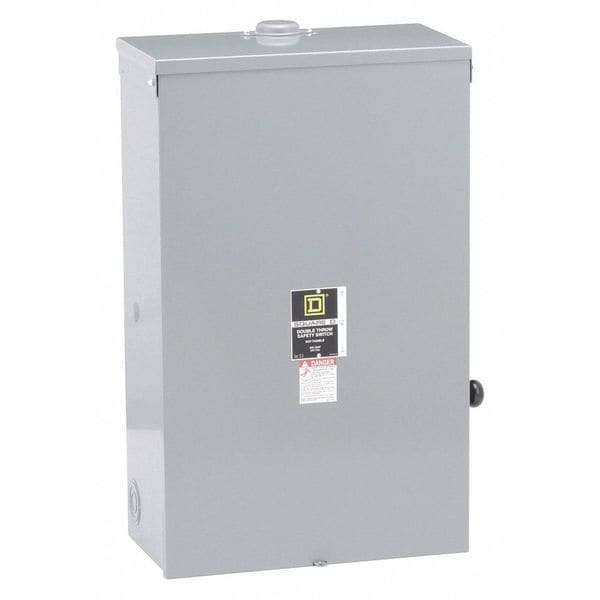

Nonfusible, Safety Switch, Heavy Duty, 240 V, 2PDT

  • Mfr # DTU224NRB

  • Zoro # G1150012

CAD Available
product price:
$
1,938.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
DPDT
Current Rating
200 A
Phase
Single
Environment
Indoor/Outdoor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DTU224NRB
Zoro #
G1150012
UPC #
785901174523
Country of Origin
Mexico

Dimensions

Depth
10 5/8 in
Height
32 1/2 in
Width
24 in

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
DPDT
Current Rating
200 A
Phase
Single
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
15 HP @ 240 V
Voltage
240 V
Housing Material
Steel
Standards
UL Listed
Number of Poles
2
Fusible / Nonfusible
Nonfusible
Number of Wires
3
Duty
Standard
IP Rating
IP14
Material of Construction
Steel
Amps AC
200 A
Metallic / Non-Metallic
Metallic
Features
Mercury Free, Toxic Heavy Metal Free
Neutral Assembly Included
Yes
Weight
29.93 kg
Gauge/Conductor
6 AWG to 300 kcmil
Mounting
Surface
Mounting Style
Surface Mount
Horsepower @ 240V AC
15 hp
NEMA Enclosure Rating
3
Includes Neutral Assembly
Yes
CAD Available
Yes

Description

Safety Switch, Contact Form DPDT, Current Rating 200 A, Depth 10 5/8 in, Duty Standard, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 32 1/2 in, Horsepower @ 240V AC 15 hp, Housing Material Steel, IP Rating IP14, Mounting Style Surface Mount, NEMA Enclosure Rating 3, Neutral Assembly Included Yes
