  15. Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PST

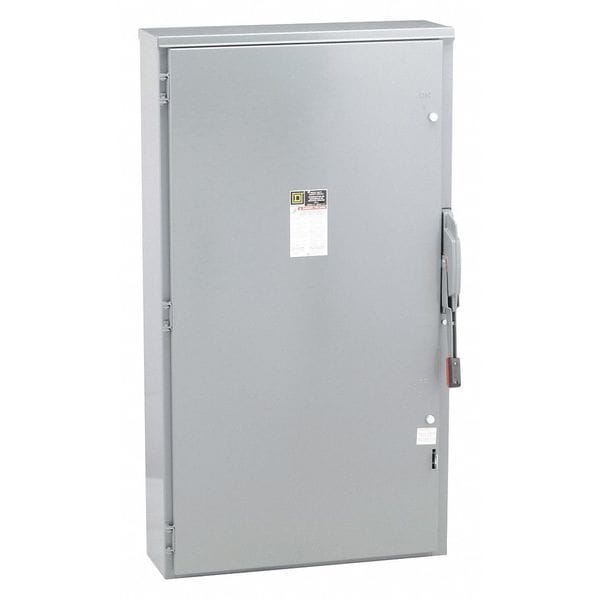

Square D Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PST HU366R - main

CAD Drawings

Download CAD Files

Nonfusible, Safety Switch, Heavy Duty, 600 V, 3PST

  • Mfr # HU366R

  • Zoro # G0900277

CAD Available
product price: $5,532.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
600 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HU366R
Zoro #
G0900277
UPC #
785901452164
Country of Origin
Mexico

Dimensions

Width
27.9 in
Height
50.3 in
Depth
9.5 in
Wire Size
AWG 3/0 to 500 kcmil copper or aluminium

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
600 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
500 HP
Voltage
600 V
Housing Material
Steel
Standards
UL Listed
Number of Wires
3
Material of Construction
Galvannealed Steel
Amps AC
600 A
IP Rating
14
Number of Poles
3
Metallic / Non-Metallic
Metallic
Duty
Heavy
Fusible / Nonfusible
Nonfusible
Weight
88.5 kg
Features
Mercury Free, PVC Free
Gauge/Conductor
3/0 AWG to 500 kcmil
Neutral Assembly Included
No
Electrical Connection
Lugs
Mounting
Surface
Horsepower @ 480V AC
400 hp
Horsepower @ 600V AC
500 hp
Mounting Style
Surface Mount
NEMA Enclosure Rating
3R
Horsepower @ 240V AC
200 hp
Wiring Configuration
3-wire
Factory Installed Neutral
None
Tightening Torque
375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil)
Device Application
Heavy application
Motor Power HP
200 hp at 240 V AC 50-60 Hz for 3 phase motors; 400 hp at 480 V AC 50-60 Hz for 3 phase motors; 500 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC
Disconnect Type
Non-fusible disconnect
Certifications
UL listed file E2875
CAD Available
Yes

Description

Safety Switch, Contact Form 3PST, Current Rating 600 A, Depth 10 1/8 in, Duty Heavy Duty, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 50 1/4 in, Horsepower @ 240V AC 200 hp, Horsepower @ 480V AC 400 hp, Horsepower @ 600V AC 500 hp, Housing Material Steel, IP Rating IP14, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Neutral Assembly Included No
