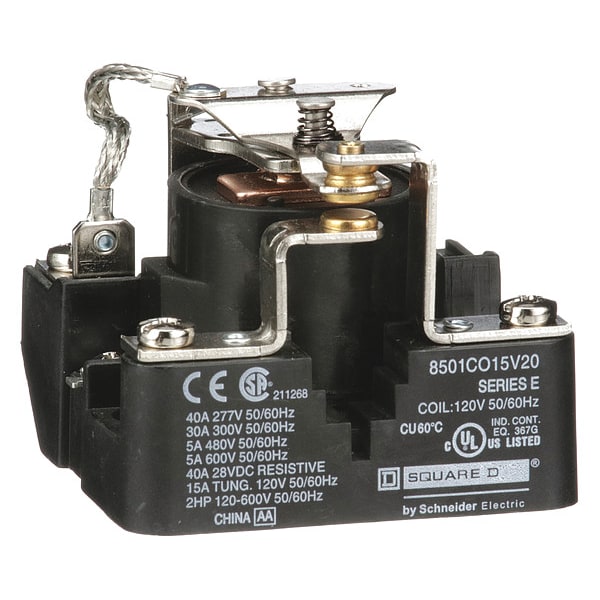

Square D Panel Mount, Power Relay, 30 A, Screw 8501CO15V29 - main

Panel Mount, Power Relay, 30 A, Screw

  • Mfr # 8501CO15V29

  • Zoro # G0571956

product price: $75.25
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO15V29
Zoro #
G0571956
UPC #
785901089728
Country of Origin
China

Dimensions

Body Depth - Relay
2.18 in
Body Height - Relay
2.43 in
Body Width - Relay
2-1/2 in
Width
2.5 in (63.50 mm)
Height
2.43 in (61.72 mm)
Depth
2.18 in (55.37 mm)

Details

Item
Power Relay
Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
SPDT
Power Consumption - Relay
10 VA
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Operating Temp. Range
-22-122°F
Switching Voltage
600 V AC
Series
type C
Class Number
8501
Terminal Tightening Torque
11 to 15 lbf.in (1.24 to 1.69 N.m)
Device Application
Suited for controlling small single phase motors and other light loads
Ambient Temperature Range - Operational
-22 to 122°F (-30 to 50°C)
Phase
1 phase
Wire Range
AWG 10 copper
Switch Function
SPDT
Control Circuit Voltage
480 V AC 50/60 Hz
Terminal Connects
Screw clamp terminal
Contact Composition
1 NO/1 NC
Status Indicator
No Indicator
Ambient Air Temperature For Operation
-22-122°F
Hold-In Power Consumption In Va
10-10 VA
Tightening Torque
11-15 lbf.in

Description

Relay, Status Indicator No Indicator
