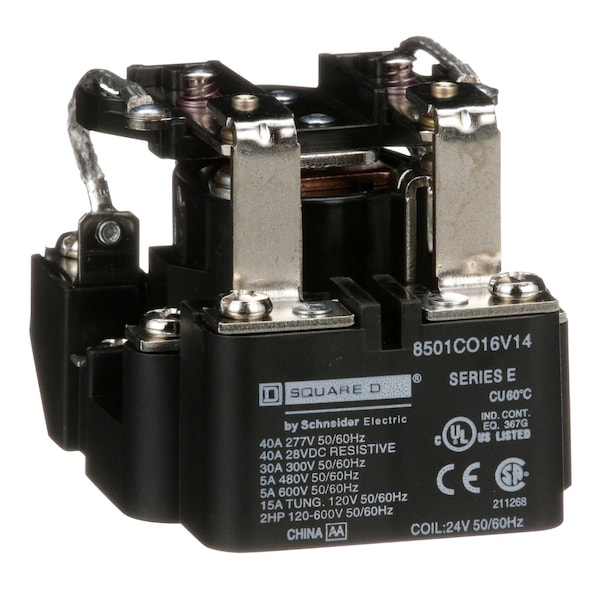

Square D Panel Mount, Power Relay, 30 A, Screw 8501CO16V14 - main

Panel Mount, Power Relay, 30 A, Screw

  • Mfr # 8501CO16V14

  • Zoro # G0844691

product price: $85.00
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
DPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO16V14
Zoro #
G0844691
UPC #
785901052128
Country of Origin
China

Dimensions

Body Height - Relay
3.12 in
Body Depth - Relay
2.31 in
Body Width - Relay
2-1/2 in
Width
2.5 in

Details

Item
Power Relay
Mounting Style
Panel Mount
Electrical Connection
Screw
Coil Voltage
600V AC
Current Rating
30 A
Contact Form
DPDT
Power Consumption - Relay
10 VA
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Switching Voltage
600 V AC
Operating Temp. Range
-22-122°F
Series
type C
Status Indicator
No Indicator
Connections - Terminals
screw clamp terminal
Hold-In Power Consumption In Va
10-10 VA
Switch Function
DPDT
Contacts Type And Composition
2 NO/2 NC
Awg Gauge
AWG 10 copper
Tightening Torque
11-15 lbf.in
Rated Power In Hp
2.0 hp
Ambient Air Temperature For Operation
-22-122°F
Phase
1 phase
Device Application
suited for controlling small single phase motors and other light loads

Description

Relay, Status Indicator No Indicator
