  9. Panelboard Interior, EDB, EDG, EDJ, 30 Spaces, 400A, 277/480V, Convertible Main Lug, 3 Phase

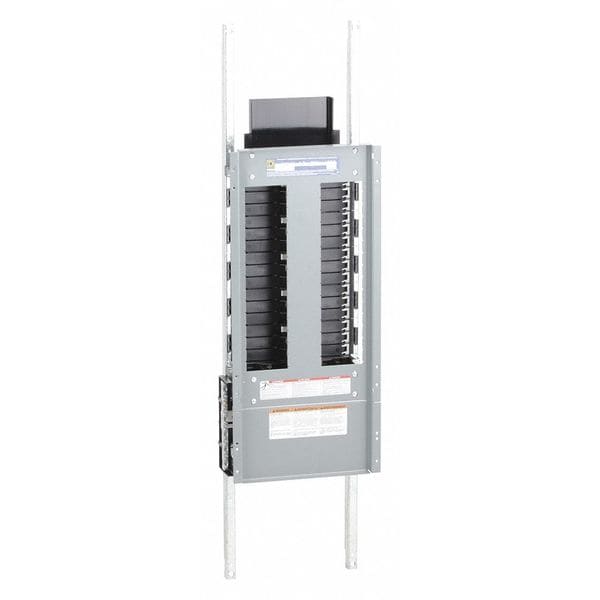

Square D Panelboard Interior, EDB, EDG, EDJ, 30 Spaces, 400A, 277/480V, Convertible Main Lug, 3 Phase NF430L4 - main

Panelboard Interior, EDB, EDG, EDJ, 30 Spaces, 400A, 277/480V, Convertible Main Lug, 3 Phase

  • Mfr # NF430L4

  • Zoro # G2651162

product price: $2,071.44
/ea
Free Shipping & Returns

Key Features

Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
400A
Voltage
277/480V
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NF430L4
Zoro #
G2651162
UPC #
785901871491
Country of Origin
Mexico

Dimensions

Height
46 in
Width
10-7/16 in
Depth
5-3/4 in

Details

Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
400A
Voltage
277/480V
Phase
3
Short Circuit Current Rating
100000 RMS Symmetrical
Series
EDB, EDG, EDJ
Recommended Surface Cover
G3941752 for Main Breaker, G0776395 for Main Lug
Recommended Flush Cover
G6665967 for Main Breaker, G2241382 for Main Lug
Bus Material
Aluminum
Main Circuit Breaker Adapter Kit
22P071
Recommended Enclosure
12N640 for Main Breaker, 1D700 for Main Lug
Standards
CSA C22.2, UL 67
Circuit Breaker Type
Bolt-On
For Use With
E-Frame Mini Circuit Breakers
Circuit Breaker Series
EDB, EDG, EDJ
Features
Mercury Free
Rated Interrupted Current
65 kA
Connections - Terminals
Lug line AWG 1/0 to 750 kcmil aluminium; Lug neutral AWG 1/0 to 750 kcmil aluminium
Wiring Configuration
4-wire
Tightening Torque
274.99 to 300.04 lbf.in (31.07 to 33.90 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 274.99 to 300.04 lbf.in (31.07 to 33.90 N.m) 0.08 to 0.27 in² (53.48 to 177.3 mm²) (AWG 1/0 to 350 kcmil); 549.98 lbf.in (62.14 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 549.98 lbf.in (62.14 N.m) 0.08 to 0.24 in² (53.48 to 152 mm²) (AWG 1/0 to 300 kcmil); 375.01 lbf.in (42.37 N.m) 0.08 to 0.59 in² (53.48 to 380 mm²) (AWG 1/0 to 750 kcmil); 375.01 lbf.in (42.37 N.m) 0.08 to 0.24 in² (53.48 to 152 mm²) (AWG 1/0 to 300 kcmil)

Description

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 400 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 277/480YV AC, Phase Three, Bus Material Aluminum, Recommended Enclosure 12N640 for Main Breaker, 1D700 for Main Lug, Circuit Breaker Type Bolt-On, For Use With NF Circuit Breakers, Height 46 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 22P071
