  9. Panelboard Interior, QHB, QOB, QOB-VH, 30 Spaces, 225A, 120/240V AC, Convertible Main Lug, 1 Phase

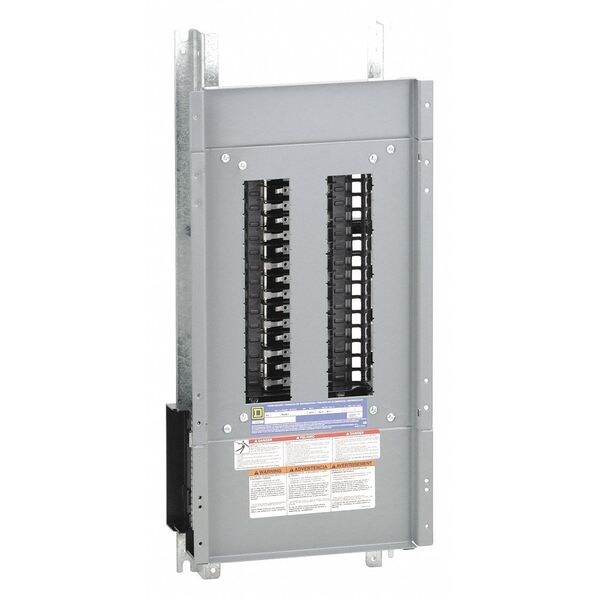

Square D Panelboard Interior, QHB, QOB, QOB-VH, 30 Spaces, 225A, 120/240V AC, Convertible Main Lug, 1 Phase NQ30L2 - main

CAD Drawings

Download CAD Files

Panelboard Interior, QHB, QOB, QOB-VH, 30 Spaces, 225A, 120/240V AC, Convertible Main Lug, 1 Phase

  • Mfr # NQ30L2

  • Zoro # G0411266

CAD Available
product price: $569.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Main Circuit Breaker or Main Lug
Convertible Main Lug
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
100000 RMS Symmetrical
Height
27 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NQ30L2
Zoro #
G0411266
UPC #
785901502005
Country of Origin
Mexico

Dimensions

Height
27 in
Width
10-7/16 in
Depth
5-3/4 in

Details

Item
Panelboard Interior
Main Circuit Breaker or Main Lug
Convertible Main Lug
Number of Spaces
30
Amps
225A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
100000 RMS Symmetrical
Series
QHB, QOB, QOB-VH
Recommended Surface Cover
G0548021 for Main Lug, G7464886 for Main Breaker
Recommended Flush Cover
G2427844 for Main Lug, G1858053 for Main Breaker
Bus Material
Aluminum
Circuit Breaker Type
Plug In Miniature
Standards
CSA Approved, UL Listed
Main Circuit Breaker Adapter Kit
4HHA3, 4HHA4, Mfr. No. NQMB2KI
Recommended Enclosure
1D691 for Main Lug, 1D698 for Main Breaker
Recommended Ground Bar Kit
5B716
For Use With
NQ Circuit Breakers
Circuit Breaker Series
QHB, QOB, QOB-VH
Features
Mercury Free
Rated Interrupted Current
10 kA; 22 kA; 65 kA
Wiring Configuration
3-wire
Tightening Torque
40.01 to 50.01 lbf.in (4.52 to 5.65 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 100.01 lbf.in (11.3 N.m) 0.02 to 0.10 in² (13.30 to 67.43 mm²) (AWG 6 to AWG 2/0); 274.99 lbf.in (31.07 N.m) 0.02 to 0.27 in² (13.30 to 177.3 mm²) (AWG 6 to 350 kcmil); 274.99 lbf.in (31.07 N.m) 0.02 to 0.20 in² (13.30 to 126.7 mm²) (AWG 6 to 250 kcmil); 274.99 lbf.in (31.07 N.m) 0.17 to 0.24 in² (107.2 to 152 mm²) (AWG 4 to 300 kcmil)
CAD Available
Yes

Description

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series QHB, QOB, QOB-VH, Amps 225 A, Short Circuit Current Rating 100000 RMS Symmetrical, Number of Spaces 30, Voltage 120/240V AC, Phase Single, Bus Material Aluminum, Recommended Enclosure 1D691 for Main Lug, 1D698 for Main Breaker, Circuit Breaker Type Plug In Miniature, For Use With NQ Circuit Breakers, Height 27 in, Depth 5 3/4 in, Width 10 7/16 in, Main Circuit Breaker Adapter Kit 4HHA3, 4HHA4, Mfr. No. NQMB2KI
