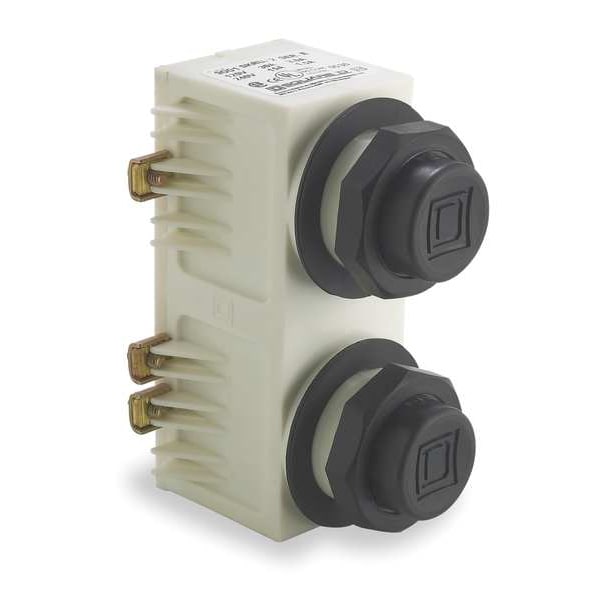

Square D Pendant Pushbutton, 30mm, Momentary 9001SKRU5 - main

Pendant Pushbutton, 30mm, Momentary

  • Mfr # 9001SKRU5

  • Zoro # G1116236

product price: $334.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Number of Operators
2
For Use With
Class 9001 Type SK
Action
Momentary/Momentary
Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKRU5
Zoro #
G1116236
UPC #
785901525547
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
30 mm

Details

Item
Pendant Push Button
Color
Black
Number of Operators
2
For Use With
Class 9001 Type SK
Action
Momentary/Momentary
Head Material
Plastic
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508
Type of Operator
Extended Button/Extended Button
Mechanical Interlock
Yes
Contact Form
2NO
Contact Rating
10A @ 600V
IP Rating
IP66
Features
Self-Grounding, Finger-Safe Terminals
Terminal Connection
Screw Clamp
Bezel Material
Plastic
Device Presentation
basic element
Ip Degree Of Protection
IP66
Contact Operation
standard
Mechanical Durability
5000000 cycles
Product Or Component Type
push-button
Device Short Name
9001SK
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Illumination
Non-Illuminated
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Number of Indicator Lights
0
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Head Color
Black
Operator Voltage Rating - Maximum
600 V AC
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Mechanical Operating Durability
5.00 x 10^6
Product Type
Push Button Operators
Series
9001SK
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Push Button Style
Extended
Operator Material
Plastic
Operating Temperature - Minimum
-22 Degrees F

Description

Pendant Push Button, 30 mm, Momentary/Momentary Action, Extended Button/Extended Button Type of Operator, Head Material Plastic, Contact Form 2NO, Color Black, Contact Rating 10A @ 600V, Number of Operators 2, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, Terminal Connection Screw Clamp, Features Self-Grounding, Finger-Safe Terminals
