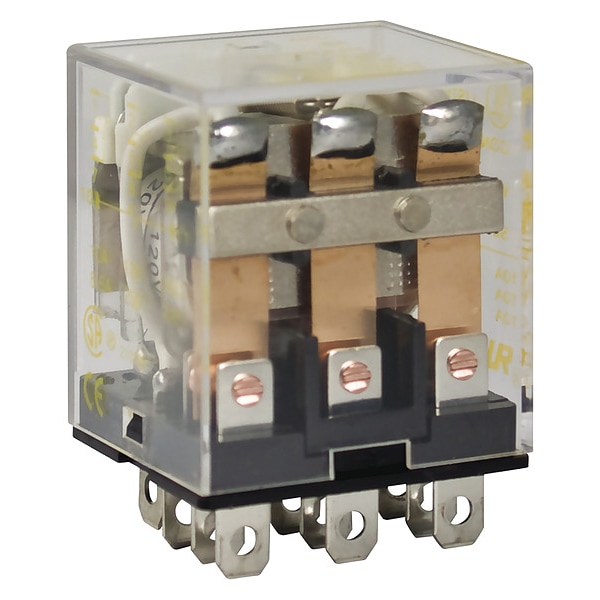

Plug-In Relay, 240VAC Coil Volts, 3PDT
Mfr # 8501RS43P14V20
Zoro # G0571877
product price:Â
$
56.29
/ea
Sold in multiples of 88 for $4,953.52
Key Features
Mounting Style
Socket
Electrical Connection
Pin
Coil Voltage
120V AC
Contact Form
3PDT
Body Height - Relay
27.3 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8501RS43P14V20
- Zoro #
- G0571877
- UPC #
- 785901137139
- Country of Origin
- China
Dimensions
- Body Height - Relay
- 27.3 mm
- Body Width - Relay
- 30.6 mm
- Body Depth - Relay
- 41.8 mm
Details
- Item
- Plug-In Relay
- Mounting Style
- Socket
- Electrical Connection
- Pin
- Coil Voltage
- 120V AC
- Contact Form
- 3PDT
- Standards
- UL Listed; UL Recognized; CSA; CE
- Features
- Green Indicator Relay Energised LED
- Contact Material
- Silver Alloy, gold flashed
- Series
- Square D 8501R Miniature Series
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Operating Temp. Range
- -40-131°F
- Pin Shape
- spade
- Switching Voltage
- 300 V AC; 30 V DC
- Status Indicator
- No Indicator
- Current Rating
- 15 A
- Contact Rating (DC)
- 15 A @ 28V
- Contact Rating (AC)
- 15 A @ 277V, 10 A @ 277V
- Number of Pins
- 11
Description
Plug-In Relay, Status Indicator No Indicator
