  11. Plug in relay, Type N, relay socket, 8 tubular pin, single tier, for 8510KP relays and 9050JCK timers, bulk packaged
Shop All Relay Sockets
Square D

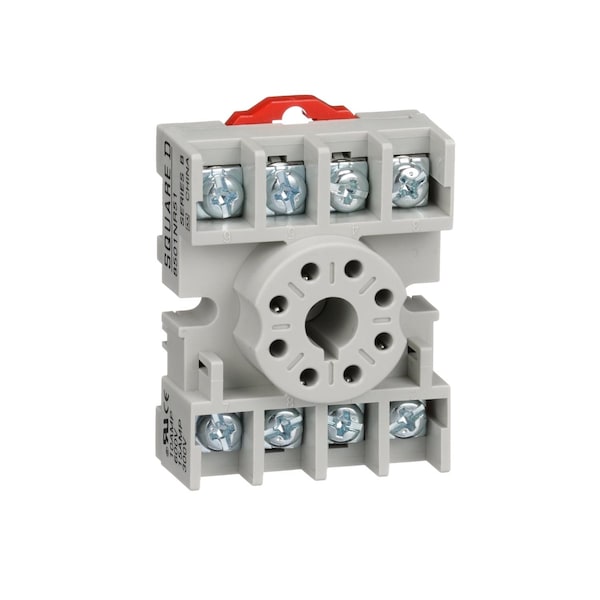

Plug in relay, Type N, relay socket, 8 tubular pin, single tier, for 8510KP relays and 9050JCK timers, bulk packaged

product price: $12.59
/ea
Sold in multiples of 10 for $125.90
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Width 40 mm
  • Depth 24.6 mm
  • Electrical Connection single tiered screw clamp terminals
  • Height 54 mm
  • Mounting Support DIN rail || panel
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 40 mm
Depth 24.6 mm
Height 54 mm

Details

Item Relay Socket,8 pin,tubular,single tie
Electrical Connection single tiered screw clamp terminals
Mounting Support DIN rail || panel
Line Rated Current 15 A 300 V AC || 5 A 600 V AC
Product Certifications UL Recognized || CSA || CE
Pin Number 8
Shape Of Pin tubular
Product Or Component Type Relay Socket

Description

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
