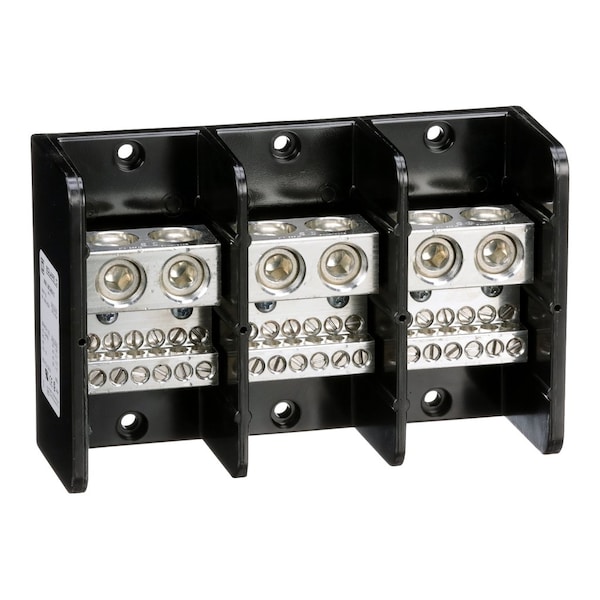

Power Distribution Block, 3 Pole, 760 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBC365212
Zoro # G0853828
product price:Â $554.99
/ea
Free Shipping & Returns
Key Features
Maximum Voltage
600 V AC/DC
Line Connections/Pole
2
Load Connections/Pole
12
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080LBC365212
- Zoro #
- G0853828
- UPC #
- 785901097709
- Country of Origin
- Korea, Republic of
Dimensions
- Length
- 5.5 in
- Depth
- 3.13 in
- Width
- 3.17 in
- Wire Strip Length
- Load 1 in bottom; Line 1.63 in; Load 0.63 in top
- For Load Copper Wire Size - Minimum
- 14 AWG
- For Load Copper Wire Size - Maximum
- 2 AWG
- For Line Copper Wire Size - Maximum
- 500 kcmil
- For Line Copper Wire Size - Minimum
- 4 AWG
Details
- Item
- Power Distribution Block
- Maximum Current - Copper Conductor
- 760 A
- Maximum Voltage
- 600 V AC/DC
- Number of Poles
- 3
- Line Connections/Pole
- 2
- Load Connections/Pole
- 12
- Line Side Connection Type
- Lug
- Load Side Connection Type
- Lug
- Housing Material
- Phenolic
- Maximum Operating Temperature
- 302 Degrees F
- Mounting Type
- Surface Mount
- Standards
- CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01
- Min. Operating Temp.
- -40°F
- Features
- Mercury Free
Description
Power Distribution Block 600V 760A
