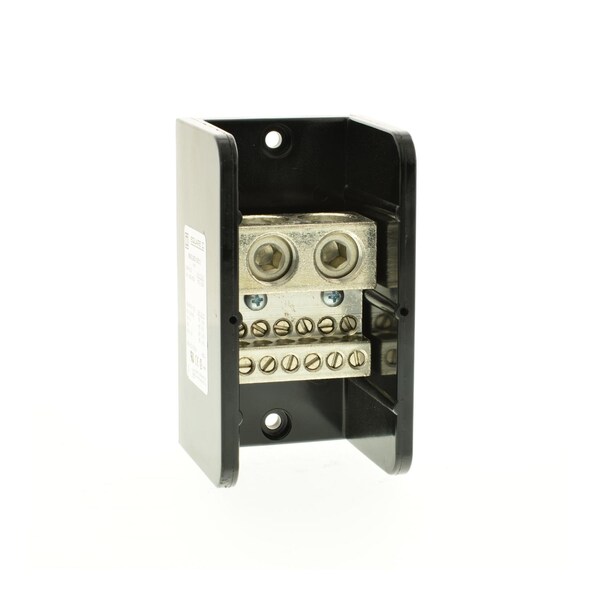

Square D Power Distribution Block 600V 760A 9080LBC165212

Power Distribution Block 600V 760A (Discontinued)

  • Mfr # 9080LBC165212
  • Zoro # G0853785
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9080LBC165212
Zoro #
G0853785
UPC #
785901097648
Country of Origin
United States

Dimensions

Width
3.17 in
Depth
3.13 in
Length
5.5 in
Wire Strip Length
Load 1 in bottom; Line 1.63 in; Load 0.63 in top
Height
5.5 in (139.70 mm)
Wire Size
Line 2, AWG 4 to 500 kcmil, copper; Load 12, AWG 14 to AWG 2, copper
Wire Stripping Length
Load: 1 in (25.40 mm) for bottom connection; Line: 1.63 in (41.40 mm); Load: 0.63 in (16.00 mm) for top connection

Details

Item
Power Distribution Block 600V 760A
Number of Poles
1
Primary Connections/Pole
2
Primary Wire Range (AWG)
AWG 4 to 500 kcmil (Copper)
Secondary Connection/Pole
12
Secondary Wire Range (AWG)
AWG 14 to AWG 2 (Copper)
Voltage Rating
600V AC/DC
Standards
CE; UL Recognized E60616 CCN XCFR2; CSA File 70361 Class 6228 01
Material
Phenolic
Amps
Cu Conductor: 760 A
Mounting
Surface Mount
Min. Operating Temp.
-40°F
Electrical Connection
Tin plated Copper Lugs
Max. Operating Temp.
302°F
Short Circuit Current Rating
100 kA UL 508 A
Features
Mercury Free
Terminals Per Pole
2 line; 12 load
Current Rating
760 A copper
Certifications
CSA file 70361 class 6228 01; UL recognized E60616 CCN XCFR2; CE
Ambient Air Temperature For Operation
-40 to 302°F (-40 to 150°C)
Block Material
Phenolic: block
End Barrier
9080LB51
Terminal Tightening Torque
Load lug 40 lbf.in (4.52 N.m) AWG 8 copper; Load lug 35 lbf.in (3.95 N.m) AWG 14 to AWG 10 copper; Line lug 375 lbf.in (42.37 N.m) AWG 4 to 500 kcmil copper; Load lug 50 lbf.in (5.65 N.m) AWG 2 copper; Load lug 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper

Description

Power Distribution Block 600V 760A
