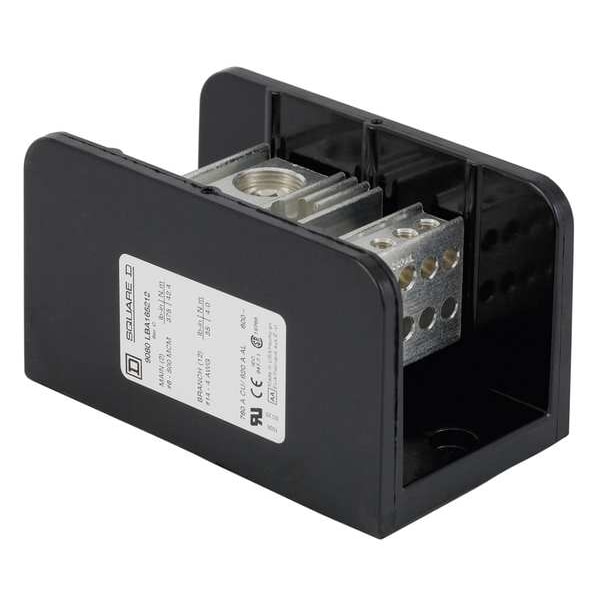

Power Distribution Block, Open, 1 Pole, 335 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBA163106
Zoro # G3539837
product price:Â
$
71.35
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
335 A
Maximum Current - Aluminum Conductor
270 A
Maximum Voltage
600 V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9080LBA163106
- Zoro #
- G3539837
- UPC #
- 785901097327
- Country of Origin
- Korea, Republic of
- Item
- Power Distribution Block
- Power Distribution Block Design
- Open
- For Conductor Material
- Aluminum, Copper
- Maximum Current - Copper Conductor
- 335 A
- Maximum Current - Aluminum Conductor
- 270 A
- Maximum Voltage
- 600 V AC/DC
- Number of Poles
- 1
- Line Connections/Pole
- 1
- Load Connections/Pole
- 6
- Line Side Connection Type
- Lug
- Load Side Connection Type
- Lug
- Terminal Material
- Aluminum
- Housing Material
- Phenolic
- Maximum Operating Temperature
- 302 Degrees F
- Mounting Type
- Surface Mount
- Standards
- CE Marked, CSA File 70361 Class 6228-1, RoHS Compliant, UL File E60616 Guide XCFR2
- Special Features
- 18 Months Warranty, Surface Mount
- Number of Circuits
- 1
- Minimum Operating Temperature
- -40 Degrees F
- Features
- Mercury Free
- Short Circuit Current Rating
- 65 kA
- Primary Wire Range
- 6 AWG to 400 kcmil
- Secondary Wire Range
- 14 to 2 AWG
- UL 94 Flammability Rating
- V-0
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 400 kcmil, Load Connections/Pole 6, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 335 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Overall Depth 2.91 in
