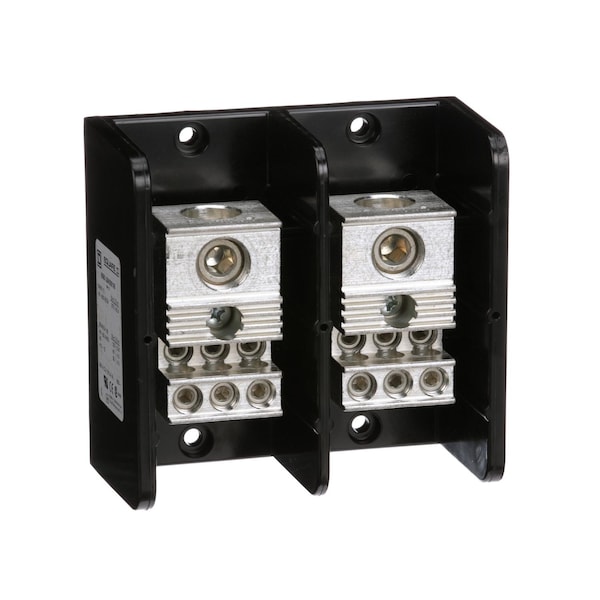

Power Distribution Block, Open, 2 Pole, 380 A Copper, 600 V AC/DC, Surface Mount
Mfr # 9080LBA265106
Zoro # G0571028
product price:Â $210.99
/ea
Free Shipping & Returns
Key Features
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
380 A
Maximum Current - Aluminum Conductor
310 A
Maximum Voltage
600 V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080LBA265106
- Zoro #
- G0571028
- UPC #
- 785901157038
- Country of Origin
- United States
Dimensions
- Depth
- 3.13 in
- Width
- 3.17 in
- Length
- 5.5 in
- Overall Width
- 3.17 in
- Overall Length
- 5.5 in
- For Load Copper Wire Size - Minimum
- 14 AWG
- For Line Copper Wire Size - Maximum
- 500 kcmil
- For Line Aluminum Wire Size - Minimum
- 4 AWG
- For Load Aluminum Wire Size - Minimum
- 14 AWG
- For Line Copper Wire Size - Minimum
- 4 AWG
- For Line Aluminum Wire Size - Maximum
- 500 kcmil
- For Load Aluminum Wire Size - Maximum
- 2/0 AWG
- Overall Depth
- 3.13 in
- For Load Copper Wire Size - Maximum
- 2/0 AWG
- Wire Strip Length
- Line 1.31 in; Load 0.75 in top; Load 1.19 in bottom
- Height
- 5.5 in (139.70 mm)
- Wire Rope Length
- 5.5 in
Description
Power Distribution Block 600V 380A Tlb, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2/0 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 2, Overall Depth 3.13 in, Overall Length 5.5 in, Overall Width 3.17 in
