This item is Discontinued.

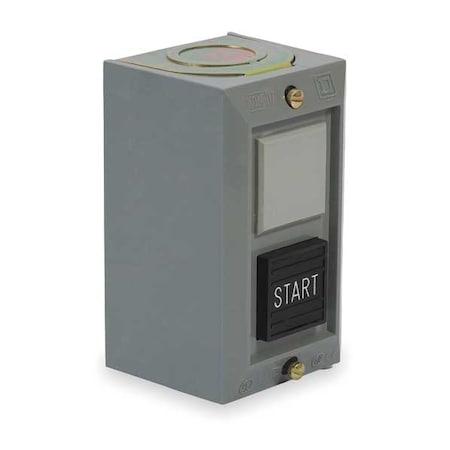

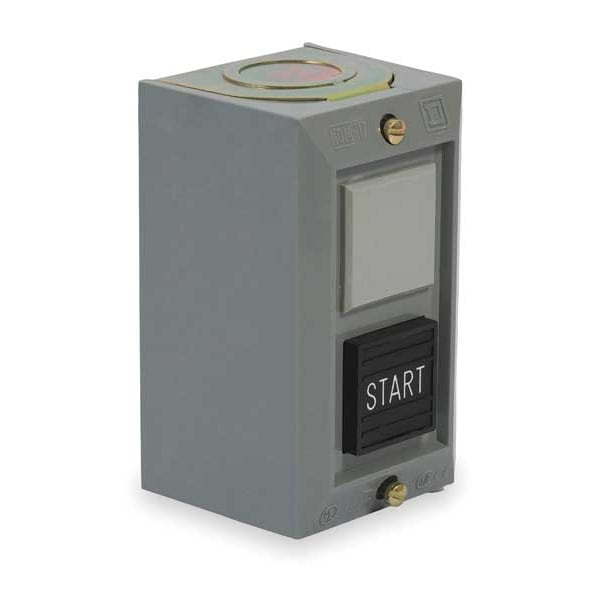

Square D Push Buttn Cntrol Station, 1NO, Start, 30mm 9001BG101

Push Buttn Cntrol Station, 1NO, Start, 30mm (Discontinued)

  • Mfr # 9001BG101
  • Zoro # G2020094
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9001BG101
Zoro #
G2020094
UPC #
785901390053
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
2.19 in
Depth
3.69 in
Width
2.06 in
Overall Width
2.06 in
Overall Depth
3.69 in
Overall Height
2.19 in
Panel Cutout Diameter
30 mm

Details

Item
Control Station
Contact Form
1NO
Number of Gangs
1
Legend
Start
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
1
NEMA Rating
1
Standards
CE, CSA, UL Listed
Contact Rating
5A @ 600V AC/24V DC
Action
Momentary
Hub
1/2 in to 3/4 in NPT
Mechanical Interlock
No
NEMA Contact Rating Designation
B600/P600
Enclosure Color
Gray
Enclosure Material
Plastic
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Mounting
Wall
IP Rating
IP20
Rated Operational Current
5 A 600 V
NEMA Degree Of Protection
NEMA 1
Product Or Component Type
Complete control station
Device Mounting
Surface
Environmental Characteristic
Standard environment
Product Certifications
UL listed file E42259 CCN NKCR; CE; CSA LR25490 class 3211 03
Control Station Composition
1 push-button START
Contact Type and Composition
1 NO
Type Of Installation
Indoor
Connections - Terminals
Screw clamp terminal
Includes Mechanical Interlock
No Mechanical Interlock Included.
DC Contact Rating
5 A @ 24 V
Product Type
Control Station
AC Contact Rating
5 A @ 600 V
Operator Configuration
Push Button
NEMA Enclosure Rating
1

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 30 mm, Legend Start, Type of Operator Push Button, Action Momentary, Contact Form 1NO, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, NEMA Contact Rating Designation B600/P600, IP Rating IP20, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 2.06 in, Depth 3.69 in, Enclosure Material Plastic, Enclosure Color Gray, Standards CE, CSA, UL Listed
