  10. /
  11. Relay, 240VAC Coil Volts, 4PDT
Shop All Plug-In Relays
Square D

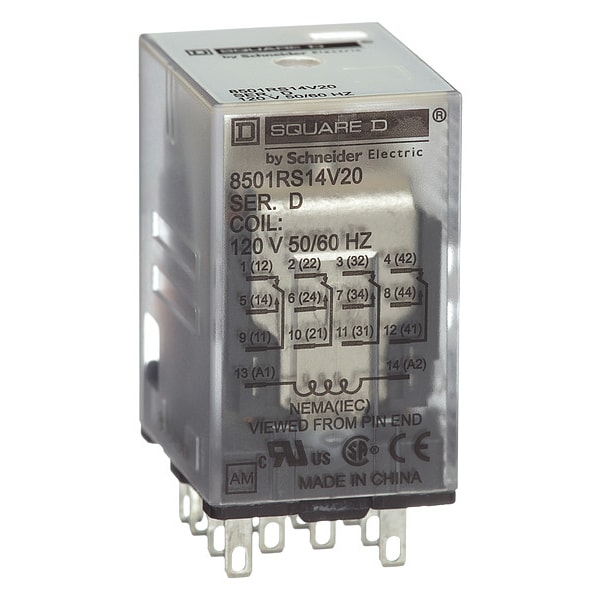

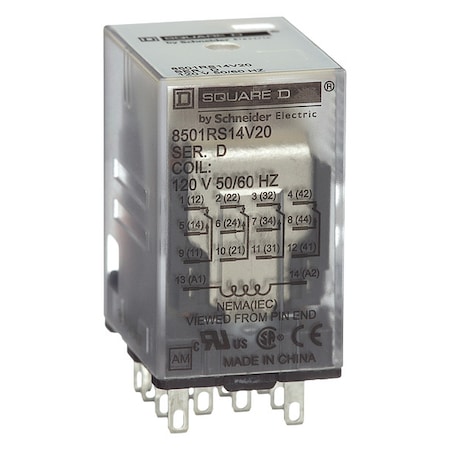

Relay, 240VAC Coil Volts, 4PDT

product price: $29.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 240VAC
  • Standards UL Listed, CSA, CE, UL Recognized
  • Series Square D 8501R Miniature Series
  • Status Indicator No Indicator
  • Width 21 mm
See all product information

Product Information

Dimensions

Width 21 mm
Depth 41.5 mm
Height 27.9 mm

Details

Coil Volts 240VAC
Item Relay
Standards UL Listed, CSA, CE, UL Recognized
Series Square D 8501R Miniature Series
Status Indicator No Indicator
Shape of Pin spade
Control Type without test button
Maximum Switching Voltage 300 V AC, 30 V DC
Product Compatibility 8501NR45
Product or Component Type Miniature Relay
Relay Type low voltage
Range of Product 8501R
[Uc] Control Circuit Voltage 12 V DC
Rated Power In Hp 0.33 120 V AC, 0.5 277 V AC
Contacts Material silver alloy, gold flashed
Operating Time 20 ms - pick-up, 20 ms - drop-out
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 8 A 120 V AC resistive control circuit UL 508, 6 A 277 V AC resistive control circuit UL 508, 8 A 30 V DC resistive control circuit UL 508
Ambient Air Temperature For Operation -40-131°F
Mounting Support socket
Switch Function 4PDT

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
