  11. Relay, 600VAC Coil Volts, 1 NC; SPST

This item is Discontinued.

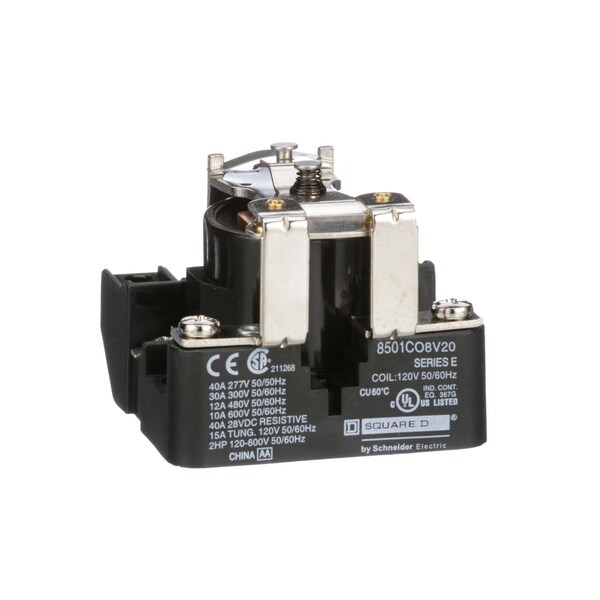

Square D Relay, 600VAC Coil Volts, 1 NC; SPST 8501CO8V20

Relay, 600VAC Coil Volts, 1 NC; SPST (Discontinued)

  • Mfr # 8501CO8V20
  • Zoro # G0847275
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501CO8V20
Zoro #
G0847275
UPC #
785901089773
Country of Origin
China

Dimensions

Body Height - Relay
2.43 in
Body Width - Relay
2-1/2 in
Body Depth - Relay
2-1/4 in
Width
2.5 in
Depth
2.25 in

Details

Item
Relay
Coil Volts
600VAC
Contact Form - Relay
1 NC; SPST
Mounting - Relay
Panel Mount
Power Consumption - Relay
10 VA
Standards
UL listed file E78351 CCN NLDX; CSA; CE
Operating Temp. Range
-22-122°F
Series
type C
Current Rating
30 A
Switching Voltage
600 V AC
Status Indicator
No Indicator
Connections - Terminals
screw clamp terminal
Product or Component Type
power relay
Phase
1 phase
Hold-In Power Consumption In Va
10-10 VA
Switch Function
SPST
Tightening Torque
11-15 lbf.in
Range of Product
Power Relay 8501C
Contacts Type And Composition
1 NC
Device Application
suited for controlling small single phase motors and other light loads
Awg Gauge
AWG 10 copper
Rated Power In Hp
2 hp
Mounting Support
panel mounting
[Uc] Control Circuit Voltage
120 V AC 50/60 Hz
Ambient Air Temperature For Operation
-22-122°F

Description

Relay, Status Indicator No Indicator
