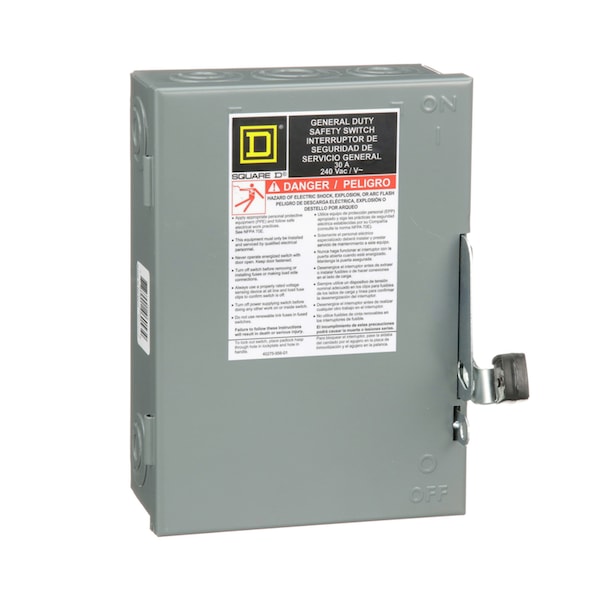

Square D Safety Switch, 120V AC, 30A, 2 Poles D211NCP - main

Safety Switch, 120V AC, 30A, 2 Poles

  • Mfr # D211NCP

  • Zoro # G2919031

product price: $53.89
/ea

Key Features

Voltage
120V AC
Amps
30A
Number of Poles
2
Max. Wire Size
AWG 6 copper || AWG 6 aluminium
Min. Wire Size
AWG 14, AWG 12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D211NCP
Zoro #
G2919031
UPC #
47569521546
Country of Origin
United States

Dimensions

Max. Wire Size
AWG 6 copper || AWG 6 aluminium
Min. Wire Size
AWG 14, AWG 12
Height
9.25 in
Width
6.75 in
Depth
3.63 in

Details

Item
Safety Switch
Voltage
120V AC
Amps
30A
Number of Poles
2
Device Application
residential
Product Or Component Type
Single Throw Safety Switch
Series Name
general duty
Motor Power Hp
0.5 hp at 120 V AC 60 Hz for 1 phase motors || 2 hp at 120 V AC 60 Hz for 1 phase motors || 1.5 hp at 240 V AC 60 Hz for 1 phase motors || 3 hp at 240 V AC 60 Hz for 1 phase motors
Disconnector Device Type
fusible disconnect switch
Nema Degree Of Protection
NEMA 1
Net Weight
1.4 kg
Tightening Torque
30-30 lbf.in 2.08-13.3 mm2² (AWG 14...AWG 6)
Line Rated Current
30 A
Device Mounting
surface
Awg Gauge
AWG 14...AWG 6 copper || AWG 12...AWG 6 aluminium
Wiring Configuration
3-wire
Product Certifications
UL listed file E2875
[Ue] Rated Operational Voltage
120 V AC
Phase
3 phase
Device Composition
neutral/earth strip 2 x 16 mm2² 5 x 6 mm2²
Fuse Type
plug
Short-Circuit Current
10 kA plug
Electrical Connection
lugs

Description

The Square D by Schneider Electric 30 amp 240 volt 2-pole general duty safety switch is designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. This switch is suitable for use as service entrance equipment when equipped with a service grounding kit. The switch is UL listed, File E2875 and meet or exceed the NEMA standard KS1.


  • • 3-wire design with 2 blades and fuse holders and 1 neutral
  • • Protection from arcing during switching
  • • Protection from live parts with cover closed
  • • NEMA type 1 metallic enclosure for indoor use
  • • Provides emergency disconnecting means
  • •
