  8. Safety Switch, Fusible, 1PST, Single Phase, NEMA 1

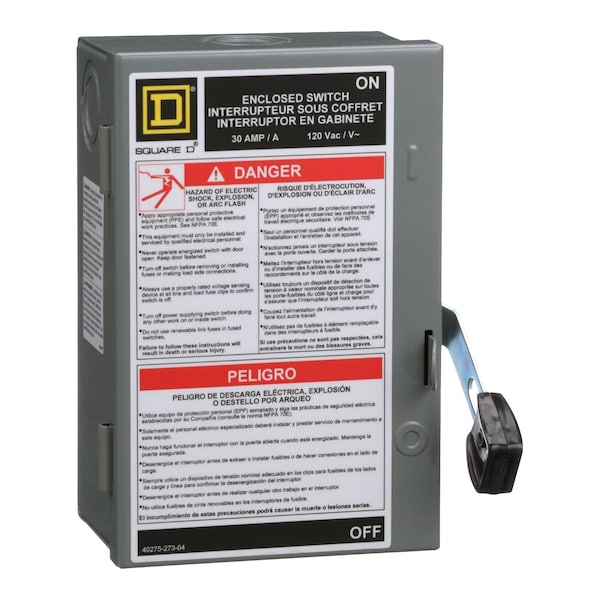

Square D Safety Switch, Fusible, 1PST, Single Phase, NEMA 1 L111N - main

Safety Switch, Fusible, 1PST, Single Phase, NEMA 1

  • Mfr # L111N

  • Zoro # G500422729

product price:  $45.25
/ea

Key Features

Protection Method
Fusible
Contact Form
SPST
Current Rating
30 A
Phase
Single
Enclosure Type
NEMA 1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
L111N
Zoro #
G500422729
UPC #
-
Country of Origin
Mexico

Dimensions

Width
6.13 in
Depth
4 in
Height
7.63 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
SPST
Current Rating
30 A
Phase
Single
Enclosure Type
NEMA 1
Voltage
120 V
Standards
UL Listed
Amps AC
30 A
Number of Poles
1
Duty
Light
Features
Mercury Free, Toxic Heavy Metal Free
Gauge/Conductor
12 to 8 AWG (Aluminum), 14 to 8 AWG (Copper)
Mounting
Surface
Number Of Wires
2
Device Application
furnace, garages
Wiring Configuration
2-wire
Device Composition
neutral (factory installed)
Series Name
light duty
Disconnector Device Type
fusible disconnect
Tightening Torque
30-30 lbf.in 2.082-8.367 mm² (AWG 14...AWG 8), 30-30 lbf.in 3.307-8.367 mm² (AWG 12...AWG 8)
Awg Gauge
AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminium
Short-Circuit Current
10 kA

Description

SWITCH FUSIBLE LD 120V 30A 1P NEMA1
