  11. Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires

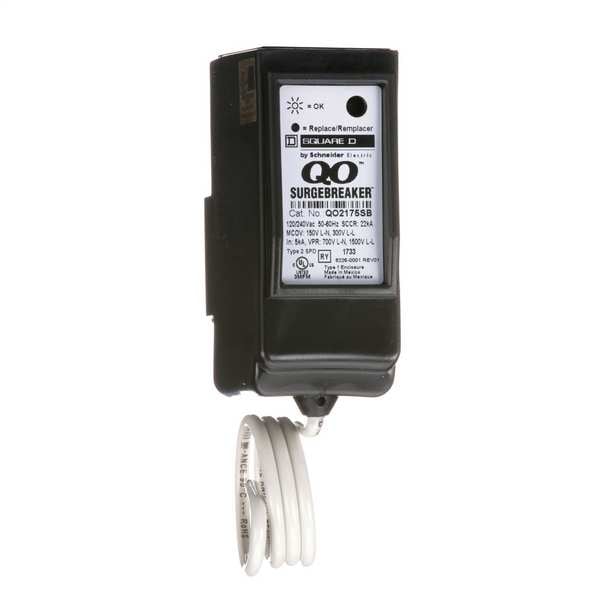

Square D Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires QO2175SB - main

Surge Protection Device, 1 Phase, 120/240V AC, 2 Poles, 3 Wires

  • Mfr # QO2175SB

  • Zoro # G1901471

product price: $140.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
For QO Load Centers
Phase
1
Voltage
120/240V AC
Number of Poles
2
Voltage Protection Rating
1500V (L-L), 700V (L-N)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QO2175SB
Zoro #
G1901471
UPC #
785901210894
Country of Origin
Mexico

Dimensions

Length
3.7 in
Depth
2.6 in
Width
1 1/2 in

Details

Item
Surge Protection Device
Mounting Style
For QO Load Centers
Phase
1
Voltage
120/240V AC
Number of Poles
2
Voltage Protection Rating
1500V (L-L), 700V (L-N)
Number of Wires
3 Wires
Modes of Protection
L-L, L-N
Max. Surge Current Per Mode
22.5kA
Max. Surge Current per Mode
22.5 kA
Max. Surge Current per Phase
22.5 kA
Nominal Discharge Current
5 kA
Short Circuit Current Rating
22kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
150V AC
Enclosure NEMA Rating
NEMA 1
Enclosure Material
Plastic
Includes
LED Status Indicator
Modular / Nonmodular
Nonmodular
Standards
CSA 233.1-87, CSA C22.2 No. 8-M1986, NEC Article 285, UL Listed, UL 1449, Type 2
System Connection
Parallel
Max. Operating Temp.
149 Degrees F
Color
Black
UL SPD Type
Type 2
Basic Material
Nonmetallic
Status Indicator
LED Light
Includes Surge Counter
No
Power Consumption In W
500 mW
[Uc] Maximum Continuous Operating Voltage
150 V || 300 V
Protection Type
thermal fuse
Response Time
< 50 ns
Product Destination
load center QO
Surge Current
22.5 kA
Ambient Air Temperature For Operation
-20-65 °C
Local Signalling
1 LED green normal operation
Product Certifications
cULus

Description

Surge Protection Device, Nonmetallic, Black, Depth 2.6 in, Enclosure Material Plastic, Enclosure NEMA Rating 1
