  11. Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 120 kA

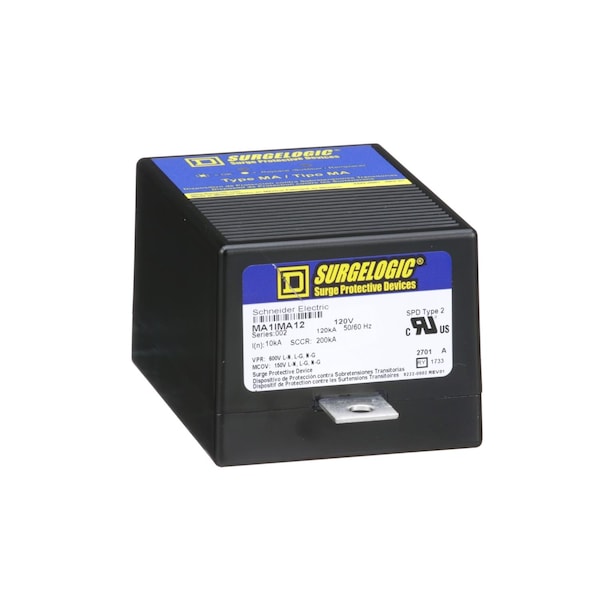

Square D Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 120 kA MA1IMA12 - main

Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 120 kA

  • Mfr # MA1IMA12

  • Zoro # G3575324

product price: $662.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel
Phase
1
Voltage
120/240V AC
Number of Wires
3 Wires
Max. Surge Current per Mode
120 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA1IMA12
Zoro #
G3575324
UPC #
-
Country of Origin
United States

Dimensions

Length
158.8 mm
Depth
68.3 mm
Width
82.8 mm

Details

Item
Surge Protection Device
Mounting Style
Panel
Phase
1
Voltage
120/240V AC
Number of Wires
3 Wires
Max. Surge Current per Mode
120 kA
Max. Surge Current per Phase
120 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
NEMA 2
Enclosure Material
Plastic
Standards
UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
[Uc] Maximum Continuous Operating Voltage
150 V
Ambient Air Temperature For Operation
65-65 °C
Device Short Name
IMA
Provided Equipment
alarm enable/disable switch
Connections - Terminals
terminals
Local Signalling
status LED green normal operation
Mounting Support
panel mounting
Surge Current
120 kA per phase
Range of Product
Surgelogic
Modular
Yes
Includes
alarm enable/disable switch

Description

Surge mod IMA - 120kA - 120/240VAC - 1P3
