  11. Surge Protection Device, 3 Phase, 120/208V AC, 3 Poles, 4 Wires, 240kA

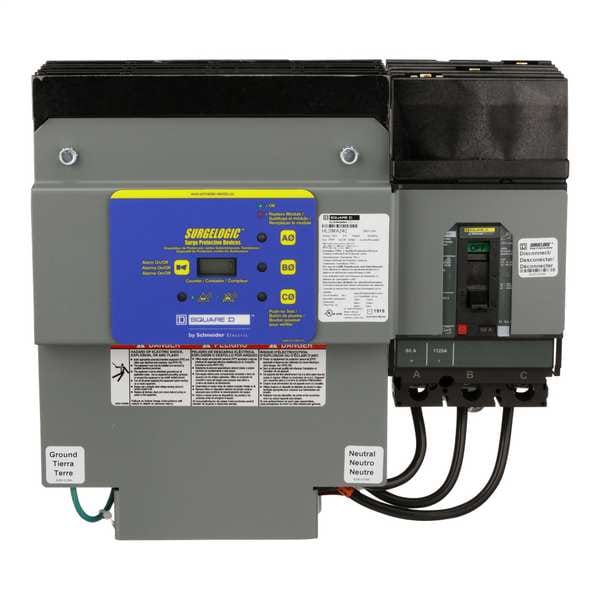

Square D Surge Protection Device, 3 Phase, 120/208V AC, 3 Poles, 4 Wires, 240kA HL2IMA24C - main

Surge Protection Device, 3 Phase, 120/208V AC, 3 Poles, 4 Wires, 240kA

  • Mfr # HL2IMA24C

  • Zoro # G6952075

product price: $13,305.87
/ea
Free Shipping & Returns

Key Features

Mounting Style
For I-Line Panelboards
Phase
3
Voltage
120/208V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-L, L-N), 700V (L-G), 900V (N-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HL2IMA24C
Zoro #
G6952075
UPC #
785901851431
Country of Origin
Mexico

Dimensions

Length
12.16 in
Depth
5.59 in
Width
13.46 in
Length (Straight Wireway)
12.16 in
Cable Length
483 mm

Details

Item
Surge Protection Device
Mounting Style
For I-Line Panelboards
Phase
3
Voltage
120/208V AC
Number of Poles
3
Voltage Protection Rating
1200V (L-L, L-N), 700V (L-G), 900V (N-G)
Filtering / Nonfiltering
Filtering
Number of Wires
4 Wires
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
240 kA
Max. Surge Current Per Phase
240kA
Max. Surge Current per Phase
240 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
Yes
Max. Continuing Operating Voltage
150V AC
Enclosure NEMA Rating
NEMA 2
Enclosure Material
Metal
Wire Gauge
6 AWG
Includes
Dry Contacts
Modular / Nonmodular
Modular
Standards
CSA C22.2 No 5-09, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, UL 1449:ed. 3, UL 1283:ed. 5, Type 2
Amps
60 A
UL SPD Type
Type 2
System Connection
Parallel
Color
Gray
Basic Material
Metallic
Includes Surge Counter
Yes
Status Indicator
Audible Alarm, LED Light
Mounting Support
panel mounting
Local Signalling
status LED green per phase normal operation || status LED red per phase fault
[Uc] Maximum Continuous Operating Voltage
150 V
Breaking Capacity Code
HL
Breaking Capacity
50 kA
Provided Equipment
alarm enable/disable switch || surge counter || circuit-breaker
Trip Unit Technology
thermal-magnetic
Surge Current
240 kA
Device Short Name
IMA
Line Rated Current
60 A
Connections - Terminals
I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m

Description

Surge Protection Device, Metallic, Gray, Amps 60 A, Depth 5.59 in, Enclosure NEMA Rating 2
