- Item

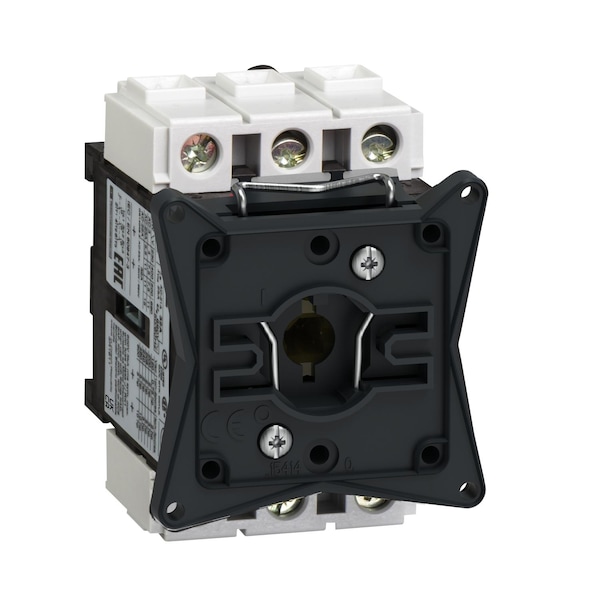

- 16 Amp Switch Body
- Amps
- 16
- Standards
- IEC 60947-3
- Range
- TeSys
- Mechanical Durability
- 100000 cycles
- Electrical Durability
- 100000 cycles AC-21 || 30000 cycles DC-1 to 5
- Network Type
- AC || DC
- [Ie] Rated Operational Current
- 11 A AC-23 Ue: 400 V
- Mechanical Robustness
- vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Suitability For Isolation
- yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Breaking Capacity
- 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
- Performance Level
- high performance
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- Product Or Component Type
- switch body
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Protective Treatment
- TC
- [Icw] Rated Short-Time Withstand Current
- 300 A 400 V 1 s
- Network Frequency
- 50/60 Hz
- Device Short Name
- V
- Contacts Type And Composition
- 3 NO
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Product Name
- TeSys VARIO
- Ambient Air Temperature For Operation
- -20-50°C
- Rated Operational Power In W
- 11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 5.5 kW 500 V AC-3) || 7.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-3) || 4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A)
- [Ith] Conventional Free Air Thermal Current
- 20 A
- Making Capacity
- 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
- Mounting Support
- symmetrical rail || plate
- Poles Description
- 3P
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Intermittent Duty Class
- 30
- Fire Resistance
- 960°C IEC 60695-2-1
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- Product Certifications
- UL || CSA || GL || UKCA || CCC
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG
- IEC Terminal Connection
- Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.01 in² (6 mm²) flexible - with cable end
- Iec Rated Operational Power in W
- 11 kW 690 V AC-23A); 3 kW 230 to 240 V AC-3); 4 kW 400 to 415 V AC-3); 5.5 kW 500 V AC-3); 7.5 kW 500 V AC-23A); 7.5 kW 690 V AC-3); 4 kW 230 to 240 V AC-23A); 5.5 kW 400 to 415 V AC-23A)
- Rated Conditional Short Circuit Current
- 10 kA 400 V 20 A aM; 10 kA 400 V 20 A gG
