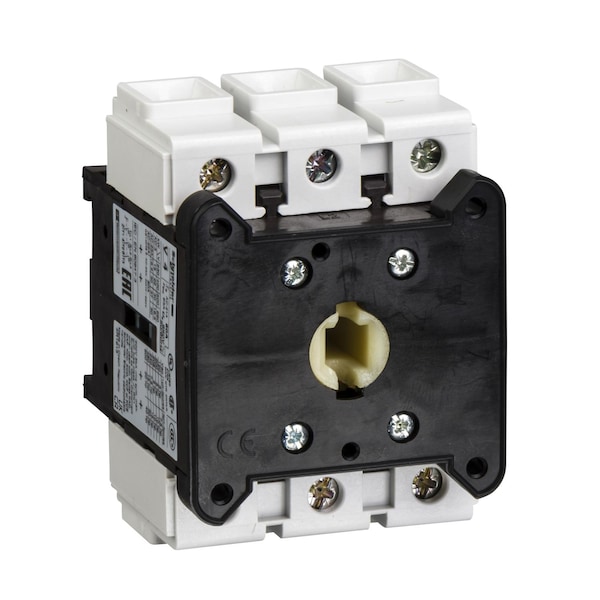

Square D Switch Body V6 - main

Switch Body

  • Mfr # V6

  • Zoro # G0654328

product price:  $386.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Depth
90 mm
Standards
IEC 60947-3
Height
125 mm
Width
90 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V6
Zoro #
G0654328
UPC #
785901305613
Country of Origin
Czechia

Dimensions

Depth
90 mm
Height
125 mm
Width
90 mm

Details

Item
Switch Body
Number of Poles
3
Standards
IEC 60947-3
Range
TeSys
Current Rating
175 A
[Ie] Rated Operational Current
83 A AC-23 Ue: 400 V
Ip Degree Of Protection
IP20 conforming to IEC 60529
Protective Treatment
TC
Network Frequency
50/60 Hz
[Ithe] Conventional Enclosed Thermal Current
140 A
Product Certifications
UL || CSA || GL || UKCA
Tightening Torque
power circuit 22.6-22.6 N.m screw clamp terminals
Intermittent Duty Class
30
Making Capacity
1750 A 400 V AC-22A || 1750 A 400 V AC-23A || 1600 A 400 V AC-21A
Rated Operational Power In W
30 kW 230 to 240 V AC-3) || 37 kW 400 to 415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230 to 240 V AC-23A) || 45 kW 400 to 415 V AC-23A)
[Ith] Conventional Free Air Thermal Current
175 A
Electrical Durability
30000 cycles AC-21 || 30000 cycles DC-1 to 5
Device Short Name
V
Suitability For Isolation
yes
Contacts Type And Composition
3 NO
Product Name
TeSys VARIO
Ambient Air Temperature For Operation
-20-50°C
Performance Level
high performance
Network Type
AC || DC
Poles Description
3P
[Icm] Rated Short-Circuit Making Capacity
2.8 kA 400 V at Ipeak
Mounting Support
symmetrical rail || plate
Breaking Capacity
1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)
Fire Resistance
960°C IEC 60695-2-1
Rated Conditional Short-Circuit Current
10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG
[Uimp] Rated Impulse Withstand Voltage
8 kV
Product Or Component Type
switch body
Mechanical Robustness
vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Mechanical Durability
30000 cycles
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
[Icw] Rated Short-Time Withstand Current
2100 A 400 V 1 s
Connections - Terminals
power circuit screw clamp terminals 70-70 mm² flexible - with cable end || power circuit screw clamp terminals 95-95 mm² solid

Description

Switch Body, Current Rating 175 A
