  9. Telemecanique Pumptrol 20 psi 40 psi Pressure Switch

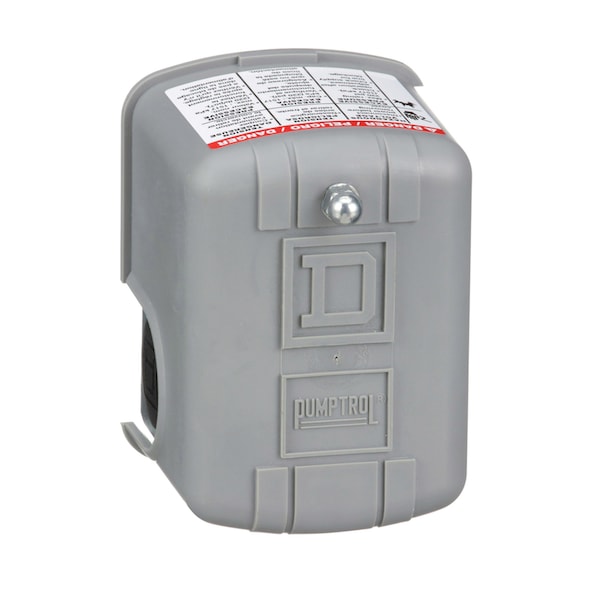

Square D Telemecanique Pumptrol 20 psi 40 psi Pressure Switch FSG2J20M4CP - main

Telemecanique Pumptrol 20 psi 40 psi Pressure Switch

  • Mfr # FSG2J20M4CP

  • Zoro # G7794358

product price: $39.89
/ea

Key Features

Height
96 mm
Aux. Contact Configuration
2 NC
Enclosure Material
PS
Depth
102 mm
Standards
EN/IEC 60730; CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSG2J20M4CP
Zoro #
G7794358
UPC #
47569807879
Country of Origin
Mexico

Dimensions

Height
96 mm
Depth
102 mm
Size/Net Weight
0.34 kg
Width
72 mm

Details

Aux. Contact Configuration
2 NC
Enclosure Material
PS
Standards
EN/IEC 60730; CE
Operation Type
Regulation Between 2 Thresholds
Wetted Materials
Nitrile; Zinc Plated Steel; Nylon 6/6
Connection Type
G 1/4 (Female) ISO 228
IP Rating
IP20
Accuracy (%)
0.02
Cable Entry
2 Cable Entries With Grommet
Electrical Circuit Type
Power Circuit
Electrical Shock Protection Class
Class I IEC 536
Electrical Durability
100,000 cycles
Pressure Sensor Type
Electromechanical
Scale Type
Adjustable Differential
Motor Power
0.75 kW/1 hp at 110V AC, 1 phase; 1.1 kW/1.5 hp at 110V AC, 3 phase; 1.5 kW/2 hp at 230V AC, 1 phase; 1.5 kW/2 hp at 400V AC, 1 phase; 2.2 kW/3 hp at 230V AC, 3 phase; 2.2 kW/3 hp at 400V AC, 3 phase
Possible Differential Minimum
1.2 bar (at High Setting); 1 bar (at Low Setting); 1.1 bar (at Middle Setting)
Pressure Actuator
Diaphragm
Maximum Operating Rate
10 cycles/min
Short-Circuit Protection
20 A Cartridge Fuse gG
Ambient Air Temperature For Operation
0 to 45°C
Mechanical Durability
1,000,000 cycles
Adjustable Range of Switching Point on Falling Pressure
0.3 to 3.4 bar
Destruction Pressure
20 bar
Green Environmental Attributes
Mercury Free
Rated Insulation Voltage
500V
Ambient Air Temperature For Storage
-30 to 80°C
Rated Impulse Withstand Voltage
6kV
Controlled Fluid
Fresh Water (0 to 70 °C); Sea Water (0 to 70°C)
Line Rated Current
10 A at 250V AC
Maximum Permissible Accidental Pressure
8 bar
Possible Differential Maximum
2.3 bar (at High Setting); 2.1 bar (at Low Setting); 2.2 bar (at Middle Setting)
Setting
Internal
Maximum Permissible Pressure Per Cycle
5.75 bar
Electrical Connection
Screw Clamp Terminals
Adjustable Range of Switching Point on Rising Pressure
1.4 to 4.6 bar
Terminals Type
(1-2) NC; (3-4) NC
Protective Treatment
Tungsten Carbide

Description

The Square D Pumptrol by Schneider Electric Water Pressure Switches have been providing rugged, reliable performance for over 67 years. These switches are designed to control electrically driven water pumps and air compressors. They can be used for jet pumps, submersible pumps and reciprocating pump applications.


  • • 20-40 PSI Pumptrol Water Pressure Switch with Low Pressure Cut-Off
  • • Suitable for jet pumps, submersible pumps and reciprocating pumps
  • • Low Pressure Cut-Off; Standard-action contacts open on rising pressure
  • • 1/4 in. pressure connection
  • •
