Shop FLOWSERVE

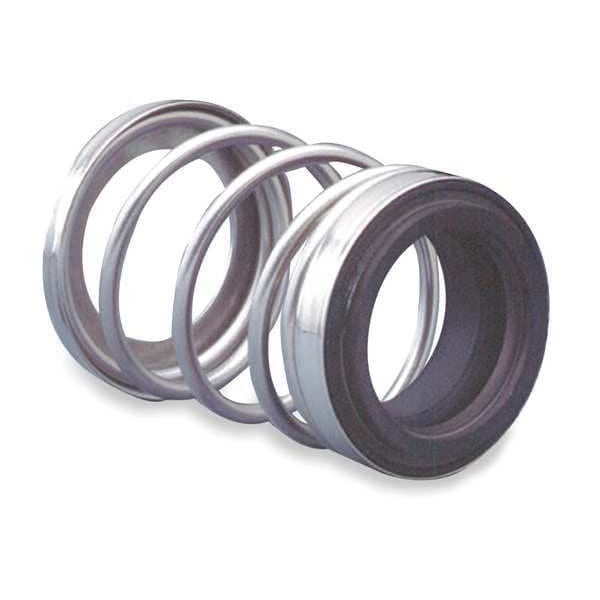

Seal, Pump Shaft

  • Mfr # 21-175-08

  • Zoro # G3368443

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Shaft Size (In.)
1 3/4 in
Nominal Working Length (In.)
2.0 in
Seat Bore
2.5 in
Seat Thickness
0.2895 in
Standard Industry Seal Number
205-21
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
21-175-08
Zoro #
G3368443
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Size (In.)
1 3/4 in
Nominal Working Length (In.)
2.0 in
Seat Thickness
0.2895 in
Working Length
2 in
For Shaft Diameter
1 3/4 in
Seal Head Thickness
0.092 in
Seal Head Inside Diameter
1.75 in
Seal Head Outside Diameter
2.446 in
Seat Outside Diameter
2.5 in

Details

Seat Bore
2.5 in
Standard Industry Seal Number
205-21
Min. Temp. (F)
-40 Degrees F
Material Content Code
BCFJF
Replacement For
Crane Type 21 and Sealol Type 43, US Seal Type C
Seal Type
21
Item
Replacement Pump Shaft Seal
Max. Temp. (F)
225 Degrees F
Gasket Material
Buna-N
Spring Type
Single Spring
Minimum Temperature
-40 Degrees F
Maximum Temperature
400 Degrees F
Shut Off Pressure (Maximum)
250 psi
Compatible with Media Type
Cooking Oil
Seal Type Designation
21
Shaft Seal Type
Mechanical
Standards
ISO 9001, TS16949
Spring Material
Stainless Steel
Ring Material
Carbon
Temperature (Maximum)
400 Degrees F
Product Type
Component Mechanical Seal
Chemical Compatibility
Cooking Oil, Water
Bellows Material
Buna-N
Spring Configuration
Single Spring
Shut Off Pressure - Maximum
250 psi
Temperature (Minimum)
-40 Degrees F
Compatible with Pump Type
Centrifugal Pump, Straight Centrifugal Pump
Shaft Speed - Maximum
82 fps
Seal Arrangement
Single

Description

Replacement Pump Shaft Seal, For Shaft Diameter 1 3/4 in, Gasket Material Rubber, Compatible with Media Type Cooking Oil, Seal Type Designation 21, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 250 psi, Spring Material Stainless Steel, Spring Type Single Spring, Standards ISO 9001, TS16949, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Working Length 2 in
