Specifications
Product Information
MFR #
9080GR6T
Zoro #
G3241244
UPC #
785901000778
Country of Origin
Mexico
Dimensions
Max. Wire Size
8 AWG
Min. Wire Size
22 AWG
Width
0.35 in
Depth
1.72 in
Channel Size
35mm/GH
Height
1.82 in
For Maximum Wire Size
8 AWG
For Fuse Diameter
3 1/32 in
Overall Depth
0.35 in
Overall Length
1.82 in
Overall Width
1.72 in
For Minimum Wire Size
22 AWG
For Channel Rail Size
35 mm
Wire Size Ranges
22 AWG - 8 AWG
Description

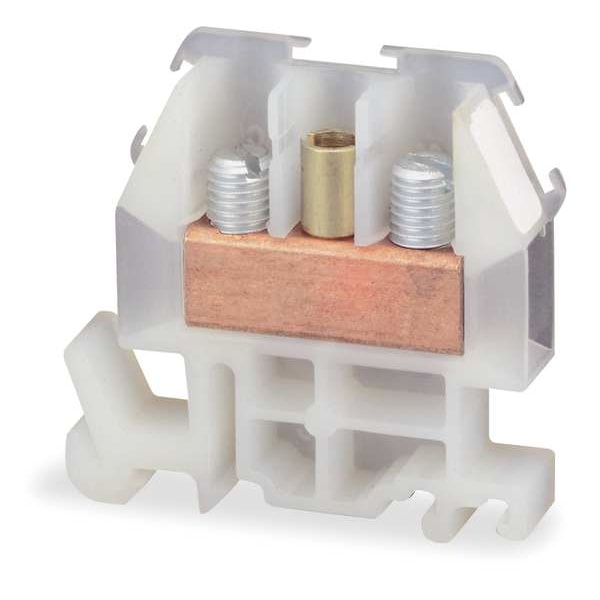

Terminal Block, Connection Type Screw Clamp, Current 60 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 8 AWG, Housing Color Natural, Maximum Voltage 600 V AC/DC, Mounting Type DIN, Number of Poles 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.35 in, Overall Length 1.82 in, Overall Width 1.72 in, Standards CE Marking, CSA Approved, UL Recognized, Terminal Block Type Solderless Box Lug, 2-Pole Jumper Compatibility 5B366
