  11. Terminal Block, Self-Lifting Pressure Wire Connector, 1 Pole, 40 A, 600 V AC/DC, 12 AWG, Natural

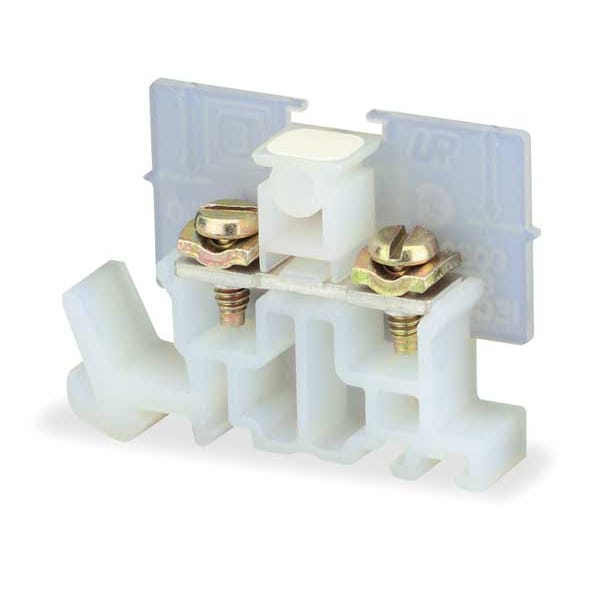

Square D Terminal Block, Self-Lifting Pressure Wire Connector, 1 Pole, 40 A, 600 V AC/DC, 12 AWG, Natural 9080GP6 - main

Terminal Block, Self-Lifting Pressure Wire Connector, 1 Pole, 40 A, 600 V AC/DC, 12 AWG, Natural

  • Mfr # 9080GP6

  • Zoro # G0598071

product price: $3.65
/ea

Key Features

Terminal Block Type
Self-Lifting Pressure Wire Connector
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9080GP6
Zoro #
G0598071
UPC #
785901155379
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
18 AWG
For Maximum Wire Size
12 AWG
Channel Size
35mm/GH
Overall Depth
0.37 in
For Fuse Diameter
3 1/32 in
Overall Width
1.8 in
Overall Length
1.48 in
For Channel Rail Size
35 mm

Details

Item
Terminal Block
Terminal Block Type
Self-Lifting Pressure Wire Connector
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
Current
40 A
Maximum Voltage
600 V AC/DC
Circuit Protection Type
None
Termination Style
Screw
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Housing Color
Natural
Standards
CE, CSA Approved, RoHS Compliant, UL Component Recognized
Block Material
Nylon
Temp. Range
-40 Degrees to 275 Degrees F
Number of Connections
2
Pieces per Foot
32
Material
Nylon: block; Tin plated brass: busbar
End Barrier Compatibility
5B359
RoHS Compliant
Yes
2-Pole Jumper Compatibility
2DD04
Compatible Manufacturer Model Number
9080 GH22, 9080 GH31, GH10, GH11, GH136, GH220, GH236, GH336, GH60, GP6B, MH320, MH339, MH379, MHA10
Maximum Operating Temperature
257 Degrees F
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Torque
20 lb-in
Includes
Adhesive Backed Strips, End Barrier, End Clamps, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip
6-Pole Jumper Compatibility
2DD05
UL 94 Flammability Rating
V-2
Localisation On Device
standard
[Ue] Rated Operational Voltage
600 V AC/DC
Ambient Air Temperature For Operation
-40-257°F
Number Of Terminal Blocks
32 per foot
Electrical Connection
pressure wire clamp
Electrical Connrection Tightening Torque
Clamp terminal zinc plated steel 18 to 20 lbf.in (2.03 to 2.26 N.m) : AWG 18 to AWG 10 copper)

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 40 A, For Minimum Wire Size 18 AWG, For Maximum Wire Size 12 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.37 in, Overall Length 1.48 in, Overall Width 1.8 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
