  11. Terminal Block, Solderless Box Lug, 1 Pole, 110 A, 600 V AC/DC, 4 AWG, Screw Termination, Natural

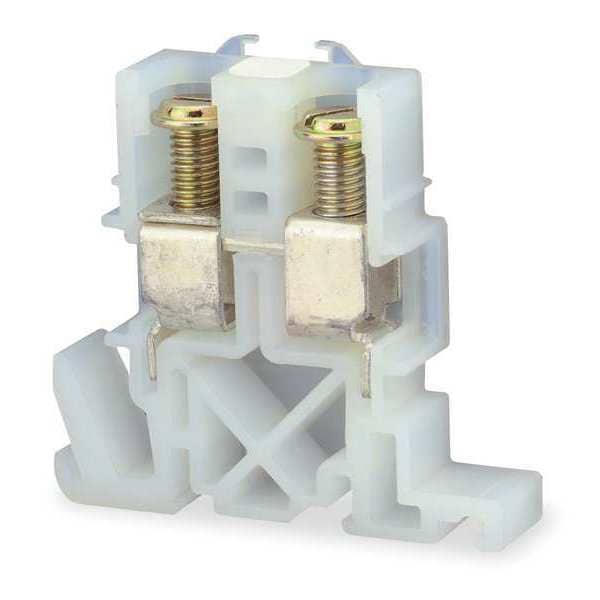

Square D Terminal Block, Solderless Box Lug, 1 Pole, 110 A, 600 V AC/DC, 4 AWG, Screw Termination, Natural 9080GC6 - main

Terminal Block, Solderless Box Lug, 1 Pole, 110 A, 600 V AC/DC, 4 AWG, Screw Termination, Natural

  • Mfr # 9080GC6

  • Zoro # G2081791

product price: $6.99
/ea

Key Features

Terminal Block Type
Solderless Box Lug
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9080GC6
Zoro #
G2081791
UPC #
785901155065
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
18 AWG
For Maximum Wire Size
4 AWG
Channel Size
35mm/GH
Overall Depth
0.43 in
For Fuse Diameter
3 1/32 in
Overall Width
1.99 in
Overall Length
2.13 in
For Channel Rail Size
35 mm

Details

Item
Terminal Block
Terminal Block Type
Solderless Box Lug
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
Current
110 A
Maximum Voltage
600 V AC/DC
Circuit Protection Type
None
Termination Style
Screw
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Housing Color
Natural
Standards
CE, CSA Approved, RoHS Compliant, UL Component Recognized
Number of Connections
2
Block Material
Nylon
Pieces per Foot
28
Temp. Range
-40 Degrees to 275 Degrees F
UL 94 Flammability Rating
V-2
Torque
35 lb-in
Includes
Adhesive Backed Strips, End Barrier, End Clamps, Marking Strip End Plug, Mounting Track, Vinyl Marking Strip
Minimum Operating Temperature
-40 Degrees F
Compatible Manufacturer Model Number
9080 GH32, GC6B, GH10, GH11, GH136, GH220, GH236, GH336, GH60, MH320, MH339, MH379, MHA10
Housing Material
Nylon
Terminal Material
Zinc Plated Steel
RoHS Compliant
Yes
Maximum Operating Temperature
257 Degrees F
6-Pole Jumper Compatibility
2DD02
2-Pole Jumper Compatibility
2DD01
End Barrier Compatibility
5B378
Electrical Connection
zinc plated steel box lugs
Ambient Air Temperature For Operation
-40-257°F
[Ue] Rated Operational Voltage
600 V AC/DC
Number Of Terminal Blocks
28 per foot
Localisation On Device
standard

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 110 A, For Minimum Wire Size 18 AWG, For Maximum Wire Size 4 AWG, Housing Color Natural, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 3 1/32 in, Overall Depth 0.43 in, Overall Length 2.13 in, Overall Width 1.99 in, Standards CE, CSA Approved, RoHS Compliant, UL Component Recognized
