  6. Thermal Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC

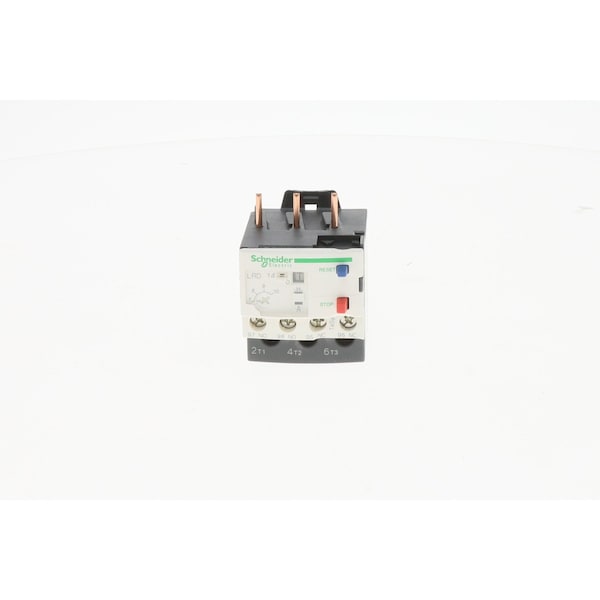

Square D Thermal Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC LRD14 - main

Thermal Overload Relay, 1NC/1NO, 7 A Min current, 10 A Max current, 690V AC

  • Mfr # LRD14

  • Zoro # G710473887

product price:  $79.69
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
7 A
Maximum Overload Relay Current Setting
10 A
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LRD14
Zoro #
G710473887
UPC #
-
Country of Origin
United States

Dimensions

Height
2.6 in
Width
1.8 in
Depth
2.8 in

Details

Item
Thermal Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
7 A
Maximum Overload Relay Current Setting
10 A
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA,UL 489
Application
Motor protection
Temperature Compensation
-4 to 140°F (-20 to 60°C)
Product Or Component Type
Differential thermal overload relay
Associated Fuse Rating
4 A gG for signalling circuit; 4 A BS for signalling circuit
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Network Frequency
0 to 400 Hz
Thermal Overload Class
Class 10A IEC 60947-4-1
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals; Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Control Type
Red push-button stop; Blue push-button reset
Conventional Free Air Thermal Current
5 A signalling circuit
Connections - Terminals
Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) solid without cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) solid without cable end
IP Degree Of Protection
IP20 conforming to IEC 60529
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Ambient Air Temperature For Storage
-76 to 158°F (-60 to 70°C)
Ambient Air Temperature For Operation
-4 to 140°F (-20 to 60°C) without derating IEC 60947-4-1
Product Name
TeSys LRD; TeSys Deca
Rated Impulse Withstand Voltage
6 kV
Product Certifications
IEC; UL; CSA; CCC; EAC; BV; RINA; DNV-GL; LROS (Lloyds register of shipping); ATEX INERIS; UKCA
Product Compatibility
LC1D09; LC1D12; LC1D38; LC1D32; LC1D25; LC1D18
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Network Type
AC; DC
Climatic Withstand
IACS E10
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Phase Failure Sensitivity
Tripping current 130% of Ir on two phase, the last one at 0
Mounting Support
Plate, with specific accessories; Rail, with specific accessories; Under contactor
Permissible Current
3 A 120 V AC-15 signalling circuit; 0.22 A 125 V DC-13 signalling circuit
Mechanical Robustness
Vibrations6 Gn IEC 60068-2-6; Shocks15 Gn for 11 ms IEC 60068-2-7
Thermal Protection Adjustment Range
7 to 10 A
Flame Retardance
V1 conforming to UL 94
Relay Application
Motor protection
Trip Clss
10

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
