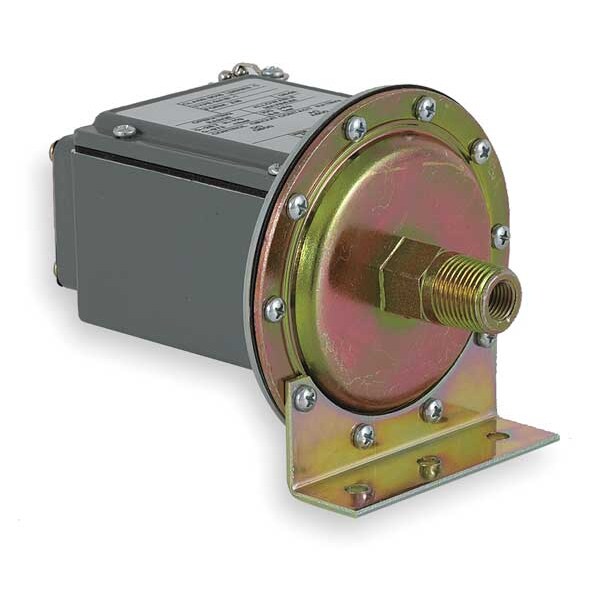

Vacuum Switch, SPDT, 1/4-18"FNPT, Diaphragm (Discontinued)

Mfr # 9016GAW1Z16
Zoro # G3210487

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

9016GAW1Z16

Zoro #

G3210487

UPC #

785901053798

Country of Origin

Mexico

Details

Item

Vacuum Switch

Contact Form

SPDT

Differential

0.8 to 9 in Hg

NEMA Rating

13, 4, 4X

Port Type

1-Port 1/2-14 in MNPT, 1-Port 1/4-18 in FNPT

Range

0 to 28.7 in Hg

Series

9016G

Action

Standard

Ambient Temp. Range

-10 Degrees to 185 Degrees F

Media Temp. Range

-14 Degrees to 250 Degrees F

Features

1/2"-14 NPT external, 1/4"-18 NPT internal

Pressure Connection Type

1/2-14" MNPT, 1/4-18" FNPT

NEMA Enclosure Rating

13, 4, 4X

Description

Vacuum Switch, Range 0 to 28.7 in Hg, Contact Form SPDT, Port Type 1-Port 1/2-14 in MNPT, 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features 1/2 In.-14 NPT external, 1/4 In.-18 NPT internal
