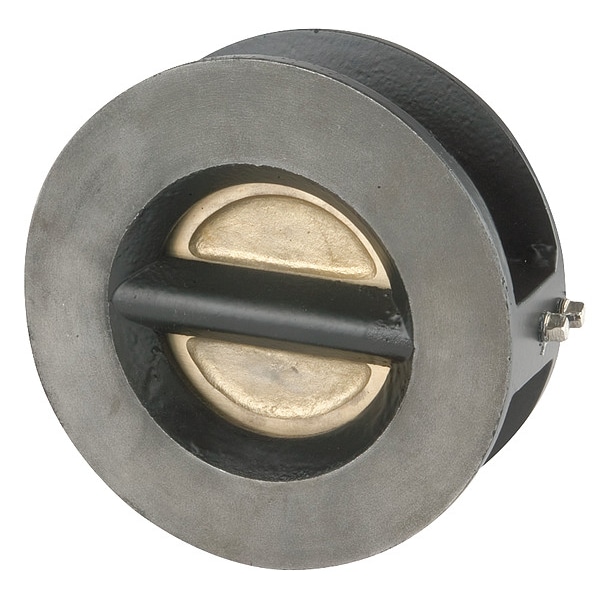

2" Wafer Flange Cast Iron Double Disc Check Valve
Mfr # 0200-125WTIBB-T
Zoro # G1693937
product price: $71.59
/eaKey Features
Pipe Size
2"
Connection Type
Wafer Flanged
Connection
125 Class Wafer Flange
Body Material
Cast iron
Length
4 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
0200-125WTIBB-T
Zoro #
G1693937
UPC #
-
Country of Origin
China
Dimensions
Pipe Size
2"
Length
4 1/8 in
Pipe or Tube Size - Check Valves
2 in
Overall Height
4 1/8 in
Size
2"
Width
2 1/8 in
Overall Length
4.13 in
Pipe or Tube Size
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Double Disc, Body Material - Valves Cast Iron, Pipe or Tube Size 2 in, Connection Type Flange x Flange, Cracking Pressure 0.300 to 1.250 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 300 Degrees F, Min. Temp. - Valves 60 Degrees F, Max. Water Pressure - Valves 200 psi @ 250 Degrees F, Max. Steam Pressure - Valves 200 psi WSP, Seat Material Buna-N
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
