  9. Industrial Pressure Gauge, 3 in Dial, 1/4 in NPT, Bottom Location, ABS Plastic Case Material

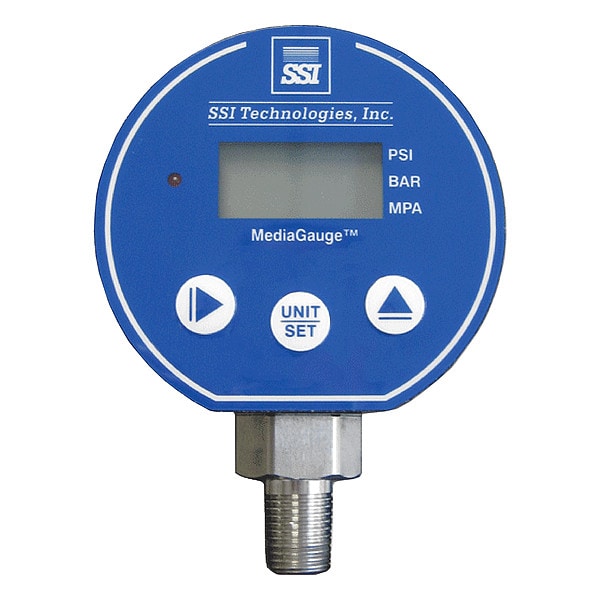

Ssi Industrial Pressure Gauge, 3 in Dial, 1/4 in NPT, Bottom Location, ABS Plastic Case Material MG-5-A-M12-R/COC - main

Industrial Pressure Gauge, 3 in Dial, 1/4 in NPT, Bottom Location, ABS Plastic Case Material

  • Mfr # MG-5-A-M12-R/COC

  • Zoro # G112007543

product price: $356.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MG-5-A-M12-R/COC
Zoro #
G112007543
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 in
Case Diameter
2.97 in
Nominal Dial Size
3 in
Case Depth
1.73 in
Cable Length
6.5 ft

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.25%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial, Industrial
Gauge Case Material
ABS Plastic
Series
MG-MD
IP/NEMA Rating
NEMA 4X
Hazardous Location Rating
No
Panel-Mountable
No
Current Output
4 to 20 mA
Accuracy Grade
Grade 3A
Backlit Screen
Yes
Pressure Range Type
Pressure
Number of Display Digits
4
Process Connection Gender
Male
Sensor Material
316L Stainless Steel
Display Range
0 to 5 psi
Case Shape
Round
Case Color
Black
Process Temperature Range
14 Degrees to 140 Degrees F
Accuracy Grade Gauge Type
Process
Display Units
bar, MPA (kg/cm²), psi
Compatible Process Media
Gas, Liquid
Power Source
8-30 VDC
Includes
6 ft Cable
Includes Calibration Certificate
No
Auto-Shutoff
No
Peak Hold
Yes
Sensor Type
Diaphragm
Standards
CE, ISO 9001, RoHS
Number of Digits
4
Loop Power
4-20 mA
Response Time
Less Than 1 ms
Data Update Frequency
1 sec
Includes Rubber Boot
Yes
Socket Material
304L Stainless Steel
Ambient Operating Temperature Range
14 Degrees to 140 Degrees F
Primary Display Range
0 to 5 psi
Pressure Gauge Type
Industrial Pressure Gauge
Display Screen Type
LCD
Memory Features
Peak Pressure Reading
Primary Display Units
bar, MPA (kg/cm²), psi
Display Type
LCD
NEMA Enclosure Rating
4X
Pressure Measuring Units
bar, MPA (kg/cm²), psi
Process Media Temperature - Minimum
14 Degrees F
Process Media Temperature - Maximum
140 Degrees F
Pressure Measurement - Maximum
5 psi
Pressure Measurement - Minimum
0 psi

Description

Digital Pressure Gauge
