  11. Ballast Dsconnct, 18AWG, 3 Ports, 1.28", PK2

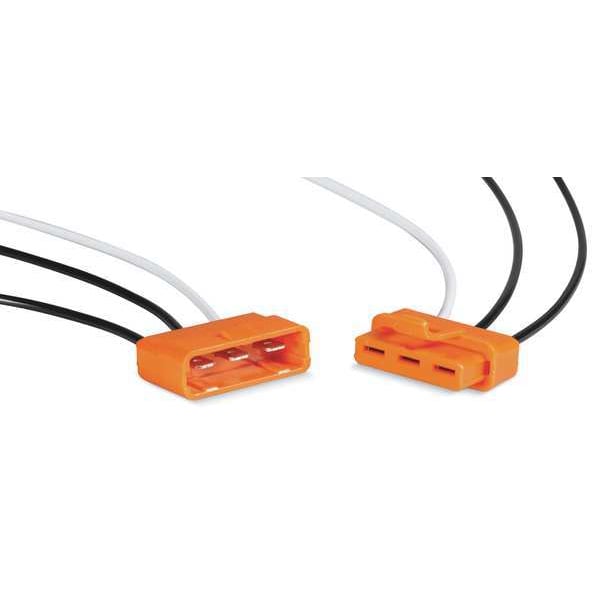

Sta-Kon Ballast Dsconnct, 18AWG, 3 Ports, 1.28", PK2 LD3 - main

Ballast Dsconnct, 18AWG, 3 Ports, 1.28", PK2

  • Mfr # LD3

  • Zoro # G2382755

product price: $10.29
/pk 2, $5.15/ea

Key Features

Wire Size
18 AWG
Material
Brass
Color
Orange
Insulation Color
Orange
Insulation Type
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LD3
Zoro #
G2382755
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Wire Size
18 AWG
Overall Length
1.28 in

Details

Item
Ballast Disconnect
Material
Brass
Color
Orange
Insulation Color
Orange
Insulation Type
Polycarbonate
Connection Type
Twist On
Number of Ports
3
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Male/Female
2 Male/2 Female
Connection Material
Tin-Plated Brass
Features
6 in Wire Leads
Standards
CEC Part I Rule 30-308(4), NEC 410.73 (G)
Application
New Installation, Retrofit
Contact Material
Tin-Plated Brass
Maximum Current
4 A
Insulation Material
Polycarbonate
Housing Material
Brass
UL 94 Flammability Rating
V-2
Number of Pieces
20
Contact Type
Plug to Socket, Socket to Plug
For Conductor Material
Copper
Compatible with Series
LD3
Maximum Voltage
600 V
Gender
2 Male/2 Female
Special Features
Finger-Safe Line Side Prevents Installer From Touching Hot Contacts, Fits Through 1/2 in Knockout, Fool-Proof Design
Includes
(1) Installation Instructions, (2) Female Load Half, (2) Male Line Half
Maximum Operating Temperature
105 Degrees F
Surface Finishing
Tin Plated
Current Rating
4A
Voltage Rating
600 V
Special Functions
Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2 knockout."
Product Type
Disconnects
Product Name
electrical con, splice, disconnect"
Standard
UL E307134
Amperage Rating
4 Amp

Description

Ballast Disconnect, Color Orange, Connection Type Twist On, Contact Type Plug to Socket, Socket to Plug, For Conductor Material Copper, Gender 2 Male/2 Female, Housing Material Brass, Insulation Material Polycarbonate, Maximum Current 4 A, Maximum Operating Temperature 105 Degrees F, Maximum Voltage 600 V, Standards CEC Part I Rule 30-308(4), NEC 410.73 (G), Application New Installation, Retrofit, Compatible with Series LD3, Contact Material Tin-Plated Brass
