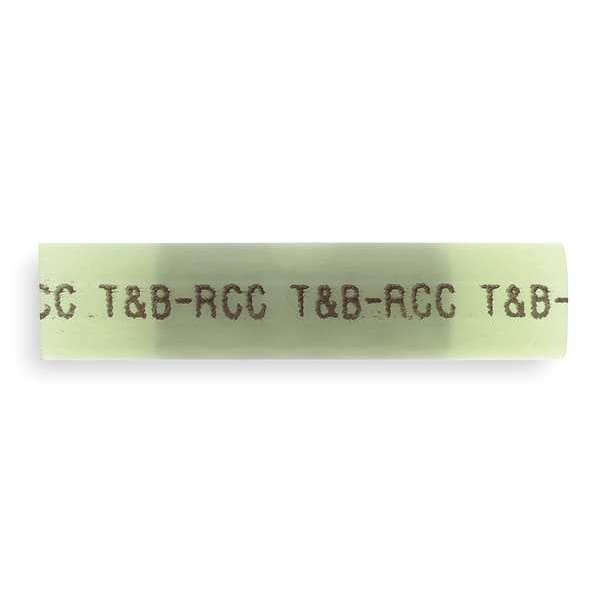

Butt Splice Wire Connector, 10 AWG Max, Yellow, Nylon Insulation, 600 V, 50 PK
Mfr # 2RC10
Zoro # G3066865
product price: $24.15
/pk 50, $0.48/eaKey Features
Type
Butt Splice
Color
Yellow
Minimum Wire Size
12 AWG
Insulation Material
Nylon
Maximum Voltage
600 V
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2RC10
Zoro #
G3066865
UPC #
-
Country of Origin
United States
Dimensions
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Overall Length
1.26 in
Barrel Inside Dia.
0.21 in
Overall Width
0.28 in
For Maximum Wire Insulation Diameter
0.21 in
Barrel Inside Diameter
0.21 in
For Maximum Wire Size - Solid
10 AWG
For Minimum Wire Size - Solid
12 AWG
Details
Item
Butt Splice Wire Connector
Type
Butt Splice
Color
Yellow
Insulation Material
Nylon
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
MIL-T-7928, UL E9809
Material
Copper
Seam Style
Overlapped
Compatible Installation Tool Model Number
ERG4001, WT112M, WT145C
Termination Style
Crimp
Features
Nylon insulated splices meet or exceed the requirements of MIL-T-7928.; These splices are color-coded according to wire size.; Application Tools: ERG4001, WT145C, WT112M; Alternate Package Qty: RCC21
Finish
Electro Tin Plated
Special Features
Nylon insulated splices meet or exceed the requirements of MIL-T-7928. These splices are color-coded according to wire size.
Description
Splice Connector, Connection Type Crimp, Insulation Material Nylon, Insulation Color Yellow, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Standards MIL-T-7928, UL E9809, Termination Style Crimp, Contact Material Copper, Overall Length 1.26 in, Seam Style Overlapped, Barrel Inside Diameter 0.21 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number ERG4001, WT112M, WT145C
