Sta-Kon

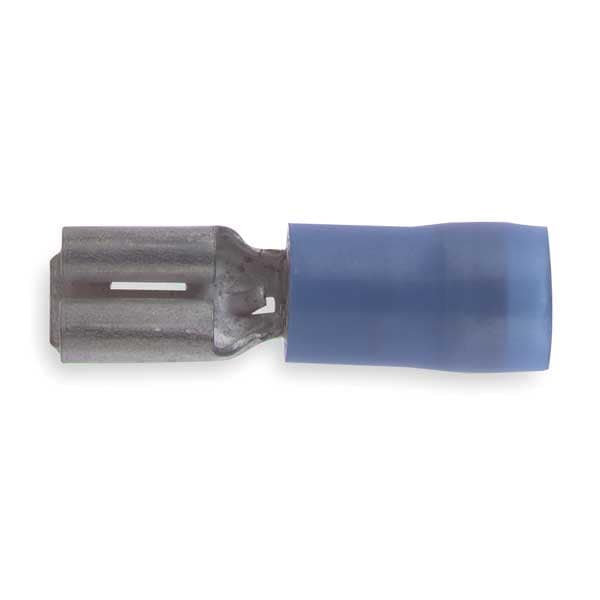

Female Disconnect, Blue, 16 to 14AWG, PK100

original price: $94.22
24% off
new price: $71.39
/pk 100, $0.71/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insulation Partial
  • Material Brass
  • Insulation Color Blue
  • Color Blue
  • Wire Range 16 to 14 AWG
See all product information

Product Information

Dimensions

Tab Size 0.032 in x 0.250 in
Overall Length 0.83 in
Barrel Inside Dia. 0.086 in
Barrel Inside Diameter 0.086 in
For Wire Size 14 AWG, 16 AWG
Tab Width 0.187 in
Barrel Size Long
Maximum Wire Size 14 AWG
Minimum Wire Size 16 AWG

Details

Item Female Disconnect
Insulation Partial
Material Brass
Insulation Color Blue
Color Blue
Wire Range 16 to 14 AWG
Insulation Type Nylon
Connection Type Crimp
Seam Overlapped
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Standards UL E66716
Connection Material Tin-Plated Copper
Features Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RBD1833
Special Features Quick, Reliable Method of Connection to Terminal Blocks and Boards without the Use of Tools, Unique Construction of the Female Disconnect Offers Long-Term Dependability
Barrel Style Funnel Entry
Tab Thickness 0.032 in
Insulation Material Nylon
Insulation Coverage Partial Coverage
Terminal Type Socket
Maximum Operating Temperature 221 Degrees F
Maximum Voltage 600 V
Termination Style Crimp
UL 94 Flammability Rating Not Rated
Contact Finish Tin
Terminal Types Female Socket
RoHS Compliant No
Contact Material Brass
Disconnect Style Tab
Seam Style Overlapped
Disconnect Type Female - 187 Series
Finish Electro Tin-Plated
Application Tools WT145C, WT2000, WT112M, ERG4001, ERG4003
Terminal Series RBD
Maximum Insulation (inches) 0.163
Temperature Rating 105°C
A (inches) 0.83
Recommended Tool ERG4001
Flammability Rating UL 94 V-2
B (inches) 0.23
Voltage Rating 600V
Stock Thickness 0.03
Type Nylon Insulated Female Disconnect
Material insulation PA
AWG-range 16-14

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Overlapped, Standards UL E66716
