  11. Fork Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only

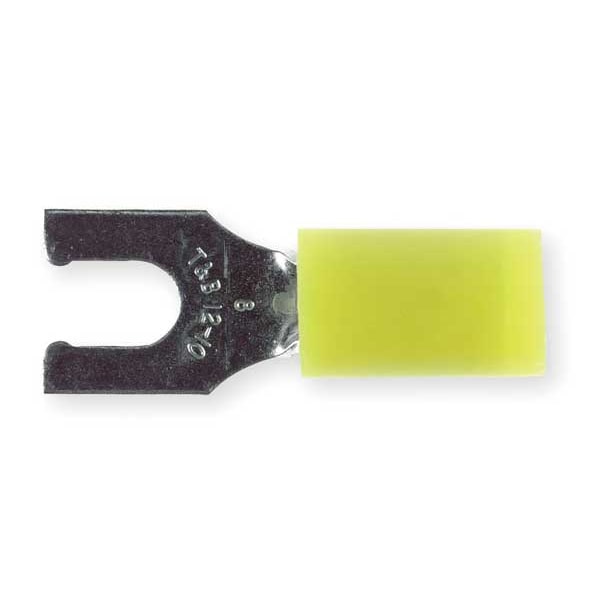

Sta-Kon Fork Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only RC10-14FL - main

Fork Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only

  • Mfr # RC10-14FL

  • Zoro # G3216035

product price: $46.89
/pk 50, $0.94/ea

Key Features

Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Minimum Wire Size
12 AWG
Insulation Coverage
Partial Coverage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RC10-14FL
Zoro #
G3216035
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
1/4 in
Tongue Width - Wire Connector
0.5 in
Overall Length
1.12 in
Tongue Width
1/2 in
Barrel Length
0.54 in

Details

Item
Fork Terminal
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Insulation Coverage
Partial Coverage
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed E9809
Connection Type
Crimp
Max. Temp.
221 Degrees F
Seam
Overlapped
Terminal Connection
Crimp
Connection Material
Copper
Wire Range
12 to 10 AWG
Features
Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.; Application Tools: ERG4001, WT145C, WT2000, WT112M, WT145A; Alternate Package Qty: RC2233
Compatible with Series
RC2233
Barrel Style
Insulation Grip
RoHS Compliant
No
Compatible Manufacturer Model Number
ERG4001, WT112M, WT145A, WT145C, WT2000
Insulation Material
Nylon
Contact Finish
Tin
Special Features
Locking Fork Terminals Have a Specially Designed Tongue That Lets Them Go on Like a Fork and Stay on Like a Ring
Seam Style
Brazed
Compatible with Product Type
Crimper, Ratchet Crimper
Surface protection
Tinned

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size 1/4 in, Termination Style Crimp, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.54 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 3KH46, 3KH52, 4XMR5
