  11. Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK

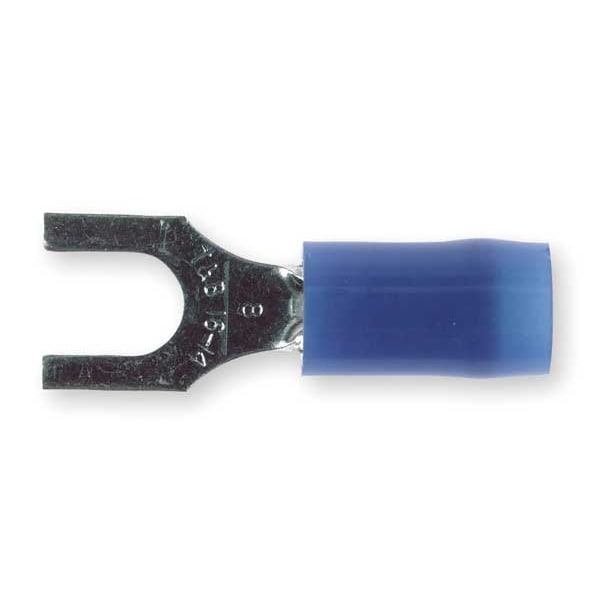

Sta-Kon Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK RB14-8F - main

Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK

  • Mfr # RB14-8F

  • Zoro # G3158364

product price: $64.15
/pk 100, $0.64/ea

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
18 AWG
Insulation Coverage
Partial Coverage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RB14-8F
Zoro #
G3158364
UPC #
786210804088
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Stud Size
#8
Overall Length
0.87 in
Tongue Width - Wire Connector
0.25 in
Tongue Length
1/2 in
Barrel Length
0.46 in
Tongue Width
0.31 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Coverage
Partial Coverage
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed E9809
Wire Range
18 to 14 AWG
Connection Material
Copper
Terminal Connection
Crimp
Max. Temp.
221 Degrees F
Connection Type
Crimp
Seam
Overlapped
Terminal Type
Standard
Features
Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep.; Nylon jacket is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RB1123
Compatible with Product Type
Crimper, Ratchet Crimper
Compatible with Series
RB1123
Insulation Material
Nylon
Contact Finish
Tin
RoHS Compliant
No
Seam Style
Brazed
Compatible Manufacturer Model Number
ERG4001, WT112M, WT145A, WT145C, WT2000
Barrel Style
Insulation Grip
Special Features
Inner Bronze Insulation Grip Sleeve Lengthens Flex Radius of Conductor and Eliminates Conductor Creep
Insulation Dia
0.162 in
Surface protection
Tinned

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.42 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.46 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 3KH46, 3KH52, 4XMR5
