  9. Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE

This item is Discontinued.

Standard Pump Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE SPSN20NPT

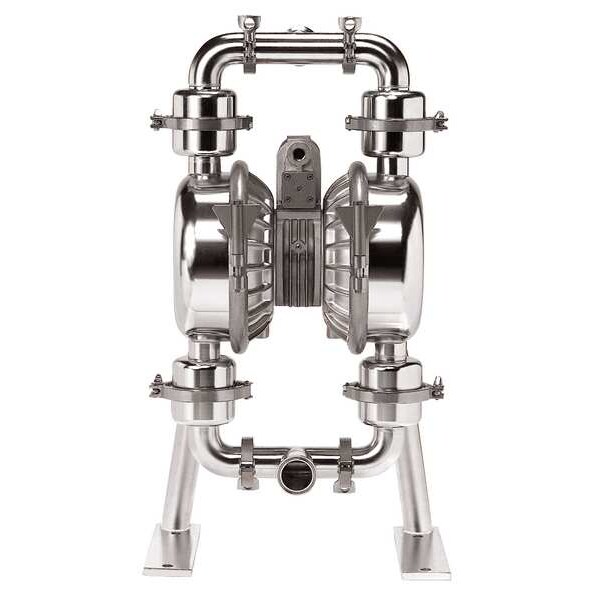

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE (Discontinued)

  • Mfr # SPSN20NPT
  • Zoro # G6692217
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPSN20NPT
Zoro #
G6692217
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Manufacturers Warranty Length
3 yr
Overall Height
34.8 in
Overall Width
17 in
Overall Length
18.5 in
Media Intake Connection Size
2 in
Media Discharge Connection Size
2 in
Solid Diameter (Maximum)
5/8 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Oil-Less Air Valve
Air Consumption (Maximum)
160 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Media Temperature (Minimum)
-35 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Includes
Muffler
Standards
ATEX Certified, FDA Compliant
Self-Priming Dry
9 ft
Agency Compliance
ATEX Certified, Sanitary (FDA Compliant)
Self-Priming Wet
32 ft
For Use With
Food
Inlet/Outlet
2 in
Media Discharge Location
Center
Media Intake Connection Type
Tri-Clamp
Flow Rate @ 40 psi
100 gpm
Flow Rate @ 80 psi
125 gpm
Media Intake Location
Center
Flow Rate @ 20 psi
80 gpm
Priming
Self-Priming
Flow Rate @ 100 psi
135 gpm
Flow Rate @ 60 psi
120 gpm
Flow Rate @ 120 psi
145 gpm
Viscosity (Maximum)
30,000 cps
Flow Rate (Maximum)
147 gpm
Wetted Housing Material
316 Stainless Steel
Media Discharge Connection Type
Tri-Clamp
Manifold Connection Type
Tri-Clamp
For Use With Potable Systems
Yes

Description

Double Diaphragm Pump, Air Consumption (Maximum) 160 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Flow Rate (Maximum) 147 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Center, Media Intake Connection Size 2 in, Media Intake Connection Type Tri-Clamp, Media Intake Location Center
