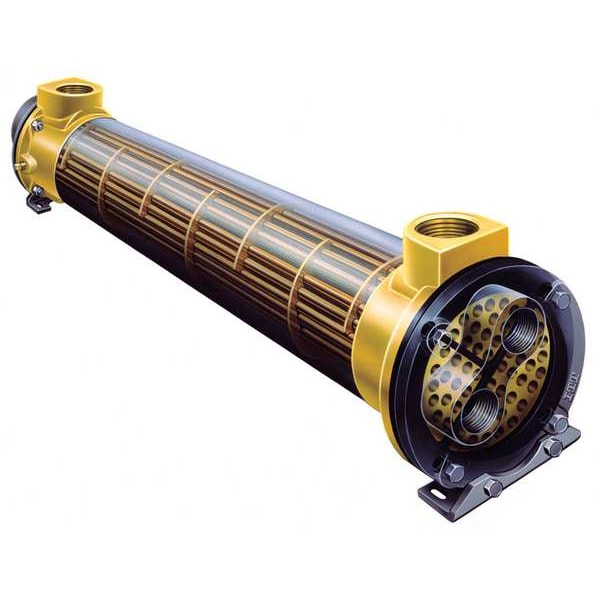

Heat Exchanger, 1,350,000 BTU, Brass
Mfr # SN503006024005
Zoro # G2308406
product price: $3,175.99
/ea
Free Shipping & Returns
Key Features
Type
Shell and Tube
Max. BtuH (Water to Water Application)
1,350,000 BtuH
Max. BtuH (Oil to Water Application)
134,000 BtuH
Pressure
Shell 300 psig, Tube 150 psig
Temp. (F)
300
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SN503006024005
Zoro #
G2308406
UPC #
-
Country of Origin
United States
Dimensions
Width (In.)
7.75 in
Height (In.)
8.375 in
Length (In.)
29.125 in
Shell Pipe Connection Size
2 in
Overall Height
8 3/8 in
Overall Width
7 3/4 in
Shell Outside Diameter
6 1/8 in
Tube Pipe Connection Size
1 1/2 in
Tube Length
29 1/8 in
Description
Heat Exchanger, Heat Dissipation Capacity for Water 1,350,000 BtuH, Heat Dissipation Capacity for Oil 134,000 BtuH, Total Surface Area 23 sq ft, Shell Outside Diameter 6 1/8 in, Tube Length 29 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water
