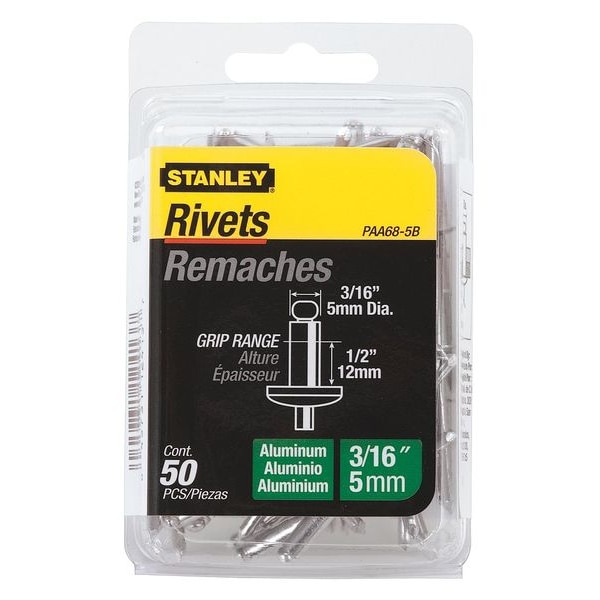

Blind Rivet, Dome Head, 3/16 in Dia., 1/2 in L, Aluminum Body, 50 PK
Mfr # PAA68-5B
Zoro # G9968761
CAD Available
product price: $5.99
/pk 50, $0.12/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Aluminum
Mandrel Material
Steel
Grip Range
0.376 in to 0.500 in
Body Length
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
PAA68-5B
Zoro #
G9968761
UPC #
045731124137
Country of Origin
China
Dimensions
Rivet Diameter
3/16 in
Body Length
1/2 in
Hole Size
3/16 in
Head Height
0.03 in
Drill Size
3/16 in
Head Dia.
0.220 in
Overall Length
1 19/32 in
Maximum Material Thickness
1/2 in
Minimum Material Thickness
3/8 in
Maximum Hole Diameter
0.1875 in
Head Diameter
3/16 in
Shank Diameter
0.188 in
Description
Blind Rivet,1.59 in L,0.188 in dia,PK50, System of Measurement Inch, Overall Length 1 19/32 in, Body Length 1/2 in, Shank Diameter 0.188 in, Product Type Blind Rivet, Body Material Aluminum, Head Type Dome, Head Diameter 3/16 in, Shear Strength 155 lb, Tensile Strength 235 lb, Maximum Hole Diameter 0.1875 in, Minimum Material Thickness 3/8 in, Maximum Material Thickness 1/2 in, Material Grade/Class IFI-114-19, Mandrel Material Steel, Manufacturer Location Globally Sourced, Drill Size 3/16 in
