This item is Discontinued.

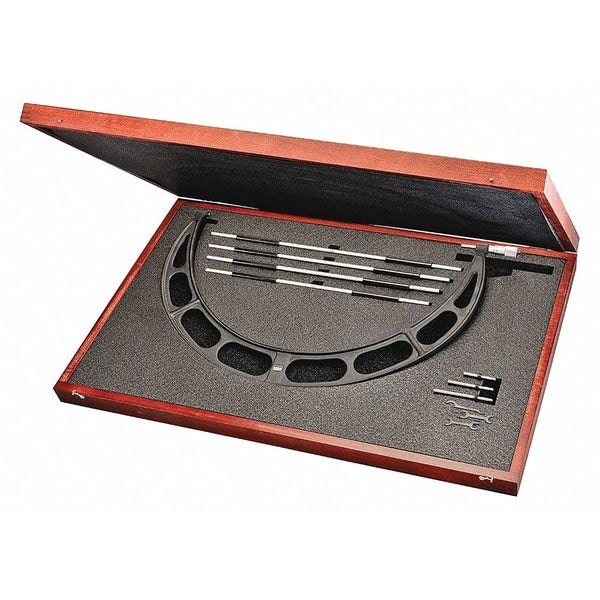

Starrett Anvil Micrometer Set, 500 to 600mm Range 224.1MJRLZ

Anvil Micrometer Set, 500 to 600mm Range (Discontinued)

  • Mfr # 224.1MJRLZ
  • Zoro # G1603502
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
224.1MJRLZ
Zoro #
G1603502
UPC #
049659727098
Country of Origin
United States

Dimensions

Anvil Size
0.300 in
Spindle Size
0.300 in
Spindle Diameter
7.6 mm
Dimension Type
Metric
Spindle Diameter1
7.6 mm

Details

Item
Mechanical Interchangeable-Anvil Outside Micrometer
Range
500 to 600 mm
Resolution
0.01 mm
Thimble
Ratchet
SPC Output
No
Lock Nut Type
Ring
Anvil Material
Steel
Operation
Mechanical
Features
Combination Ratchet And Speeder For Uniform Pressure And Quick Adjustment, Micro-Lapped Measuring Faces, Quick And Easy Sleeve Adjustment, Resists Rust
Includes
500 mm Anvil, 525 mm Anvil, 550 mm Anvil, 575 mm Anvil
Anvil
Flat
Rotating Spindle (Yes/No)
Yes
Spindle Material
Steel
Spindle
Flat
Thimble Type
Ratchet
Maximum Measurement - mm
600 mm
Included Certification
Long Form Certificate of Accuracy Traceable to NIST
Long Form Calibration Certificate
Yes
Anvil Shape
Flat
Minimum Measurement - mm
500 mm
Case Type
Wooden
Accuracy
+/-0.002 mm
Operation Type
Mechanical
Frame Material
Cast Iron
Case Included
Yes
IP Rating
Not Rated
Rotating Spindle
Yes
Millimeters Measured - Minimum
500 mm
Millimeters Measured - Maximum
600 mm

Description

Mechanical Interchangeable-Anvil Outside Micrometer, Range 500 to 600 mm, Resolution 0.01 mm, Accuracy +/-0.002 mm, IP Rating Not Rated, SPC Output No, Long Form Calibration Certificate Yes, Anvil Shape Flat, Anvil Size 0.300 in, Dimension Type Metric, Operation Type Mechanical, Thimble Type Ratchet, Anvil Material Steel, Case Included Yes, Case Type Wooden
