  13. Dial Test Indicator Set, 1-1/4", White

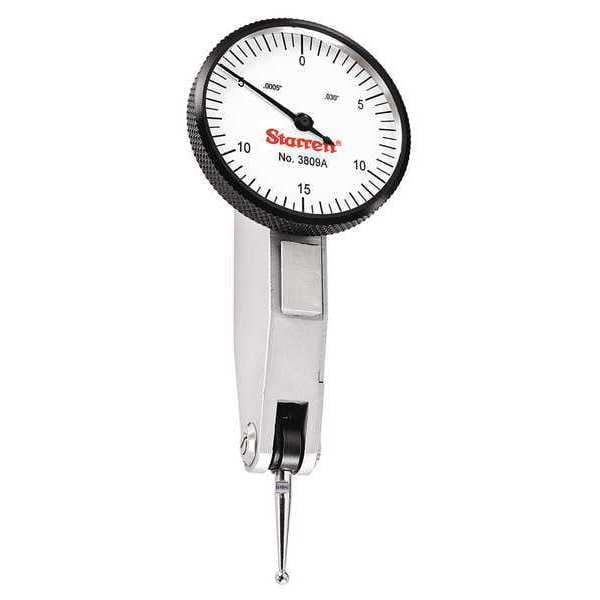

Starrett Dial Test Indicator Set, 1-1/4", White 3809A - main

Dial Test Indicator Set, 1-1/4", White

  • Mfr # 3809A

  • Zoro # G1592217

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.002 mm
Range
0 in to 0.03 in
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.0005 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3809A
Zoro #
G1592217
UPC #
049659123333
Country of Origin
China

Dimensions

Contact Point Length
1/2 in
Dial Size
1.25 in
Contact Point Dia.
0.15625 in
Dimension Type
Inch
Stylus Length
0.1875 in, 20 mm
Contact Point Diameter
0.15625 in

Details

Graduations
0.002 mm
Range
0 in to 0.03 in
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.0005 in
Includes
3/8 in Dovetail Clamp; 5/32 in Dovetail Clamp
Indicator Style
Horizontal
Contact Point Style
Ball
Reading
Balanced
Bearing Type
Jeweled
Series
Starrett 3809
Dial Reading
0-15-0
Range per Revolution
0.03 in
Dial Color
White
Item
Horizontal Dial Test Indicator
Long Form Calibration Certificate
No
Standards
ANSI
Mounting Style
Dovetail
Includes Dovetail Mount Attachments
Yes
Number of Indicators
1
Included Certification
None
Minimum Measurement - Inch
0 in
Maximum Measurement - Inch
0.03 in
Includes Case
Yes
Contact Point Shape
Ball
Contact Point Material
Steel
Operation Type
Lever-Style
Test Indicator Style
Horizontal
Non-Magnetic Tip
No
Product Type
Horizontal Dial Test Indicator
Inches Measured - Maximum
0.03 in
Inches Measured - Minimum
0 in

Description

The Starrett 3809A Dial Test Indicator Set is an accurate measuring device for various mechanical and industrial applications. The horizontal dial test indicator has a range of 0 in to 0.03 in.. It has graduations of 0.0005 in., making it more precise than other tools on the market. With a satin chrome finish, this white dial indicator is corrosion resistant and easy to clean. The dial test indicator also features a balanced dial reading of 0-15-0, giving you accurate measurements every time. When working with fasteners, you will want to have the Starrett 3809A Dial Test Indicator Set on hand.
