  13. Dial Test Indicator Set, 1-1/4", White
Shop All Dial Indicators
Starrett

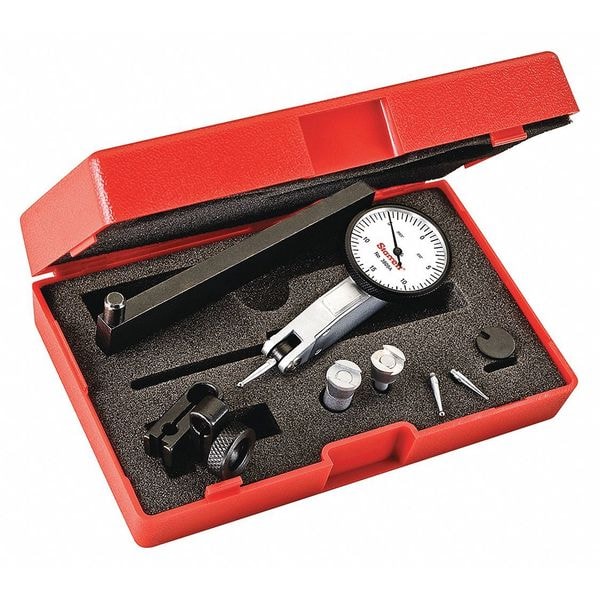

Dial Test Indicator Set, 1-1/4", White

product price: $190.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Graduations 0.0005 in
  • Range 0 in to 0.03 in
  • Features Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
  • Finish Satin Chrome
  • Accuracy +/-0.0005 in
See all product information

Product Information

Dimensions

Contact Point Length 1/2 in
Dial Size 1.25 in
Contact Point Dia. 0.078125 in, 0.15625 in
Stylus Length 0.1875 in, 20 mm
Dimension Type Inch

Details

Graduations 0.0005 in
Range 0 in to 0.03 in
Features Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish Satin Chrome
Accuracy +/-0.0005 in
Includes 0.156 in Swivel Post Holder, 3/8 in Dovetail Clamp; 5/32 in Dovetail Clamp, Contact Wrench, Tool Post Holder
Indicator Style Horizontal
Contact Point Style Ball
Reading Balanced
Bearing Type Jeweled
Series Starrett 3809
Dial Reading 0-15-0
Range per Revolution 0.03 in
Item Horizontal Dial Test Indicator
Dial Color White
Standards ANSI, ASME
Long Form Calibration Certificate No
Includes Case Yes
Number of Indicators 1
Includes Dovetail Mount Attachments Yes
Test Indicator Style Horizontal
Mounting Style Dovetail
Maximum Measurement - Inch 0.03 in
Contact Point Shape Ball
Contact Point Material Steel
Included Certification None
Minimum Measurement - Inch 0 in
Operation Type Lever-Style
Non-Magnetic Tip No

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.03 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 0.078125 in, 0.15625 in, Dial Color White, Dial Reading 0-15-0, Dial Size 1.25 in, Dimension Type Inch, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.03 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.03 in, Series Starrett 3809, Test Indicator Style Horizontal
