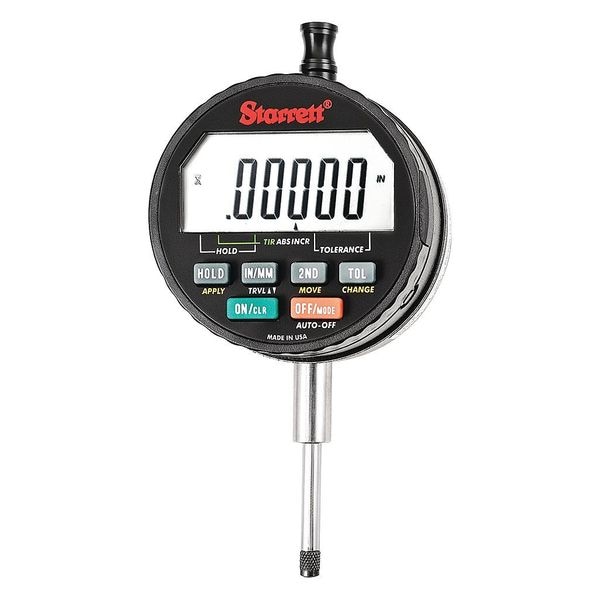

Electronic Indicator, 1"/25mm Range

  • Mfr # F2730IQ

  • Zoro # G1591620


product price: $772.99
/ea
Free Shipping & Returns

Key Features

Series
Series 2700
Range
0 in to 1 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Bezel
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F2730IQ
Zoro #
G1591620
UPC #
049659495096
Country of Origin
United States

Dimensions

Dimension Type
Inch/Metric
Dial Size
2.5 in
Contact Point Dia.
0.19 in
Stem Thread Size
#4-48 UNF
Stem Dia.
0.375 in
Battery Size
CR2450
Stem Diameter
0.375 in
Contact Point Diameter
0.19 in

Details

Item
Digital Indicator
Series
Series 2700
Range
0 in to 1 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Bezel
Yes
Long Form Calibration Certificate
No
Features
Rugged, Sealed Enclosures, Rotating Bezel, Data Collection and Hard Copy Documentation, Zero The Tool At Any Position of The Spindle Hold Button to Freeze Display, Plus or Minus Travel Direction, Auto-Off
Includes
3/8 in Stem
Maximum Measurement - mm
25 mm
Variable Resolution
Yes
SPC Output
Yes
Display Type
LCD
Minimum Measurement - mm
0 mm
Back Type
Lug
Minimum Measurement - Inch
0 in
Includes Battery
Yes
Maximum Measurement - Inch
1 in
Operation Type
Plunger
Number of Indicators
1
Shock Resistant
No
Compatible Wireless Transmitter
PT63300-4N
Includes Case
No
Non-Magnetic
No
Included Certification
None
Contact Point Shape
Curved
Max. Measuring Force
1.471 N
Compatible Data Output Cable
2700SCKB
Bezel Type
No
Data Output Type
Cabled
IP Rating
IP54
Bezel Lock
No
Maximum Measuring Force
1.471 N
Body Color
Black
Inches Measured - Maximum
1 in
Millimeters Measured - Maximum
25 mm
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm

Description

When you need to measure small distances, the Starrett F2730IQ Electronic Indicator is the tool for the job. It is designed to be rugged and durable. The electronic indicator has a zero button that lets you freeze the display at any position of the spindle. There is also a plus or minus travel direction button, which makes it easy to set up your measurements. You can easily collect data with this digital indicator, which has an auto off feature as well as hard copy documentation. This indicator features an accuracy of +/-0.0001 in; +/-0.002 mm, making it perfect for precision work applications such as assembly and inspection tasks. The Starrett F2730IQ Digital Indicator is an accurate tool that will make measuring easier than ever before.

Restrictions

Hazardous material
