Shop INSIZE

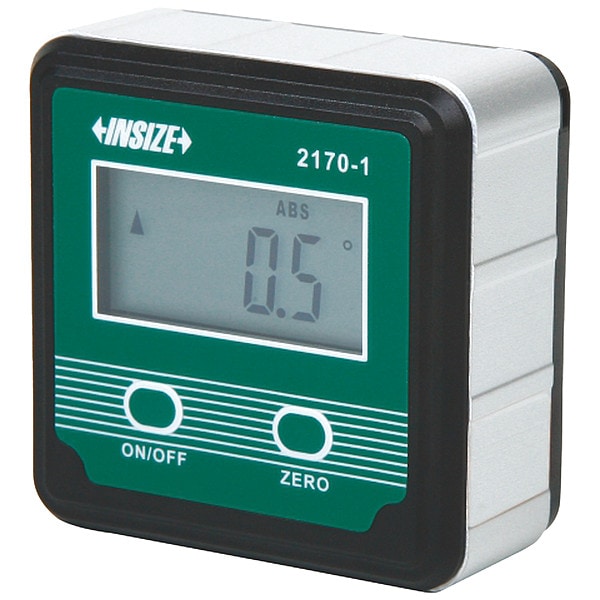

Electronic Level, 1-7/64" W, 2-23/64" L

  • Mfr # 2170-1

  • Zoro # G6578603

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.1 Degrees
Color
Green
Features
Absolute and Incremental Measurement, Buttons: On/Off, Zero, Absolute and Incremental Measurement, The Display Flips Over when the Bottom Faces up the Backlight is on Automatically when in Use, and Automatically Off in 15 Minutes After use the Sea Level is Permanently Set Inside the Chip, Zero Setting is Not Needed when Battery is Replaced
Includes
Case
Application
Check or Level Surfaces
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2170-1
Zoro #
G6578603
UPC #
-
Country of Origin
China

Dimensions

Thickness (In.)
1.102 in
Height (In.)
2.36 in
Width (In.)
1.11 in
Length (In.)
2.36 in
Overall Length
2 3/8 in
Overall Height
2 3/8 in
Battery Size
AAA
Overall Width
1 1/8 in
Wire Rope Length
2 3/8 in
Length
2 3/8 in

Details

Accuracy
+/-0.1 Degrees
Color
Green
Features
Absolute and Incremental Measurement, Buttons: On/Off, Zero, Absolute and Incremental Measurement, The Display Flips Over when the Bottom Faces up the Backlight is on Automatically when in Use, and Automatically Off in 15 Minutes After use the Sea Level is Permanently Set Inside the Chip, Zero Setting is Not Needed when Battery is Replaced
Includes
Case
Application
Check or Level Surfaces
Number of 45 Degree Vials
0
Number of Level Vials
0
Number of Plumb Vials
0
Total Number of Vials
0
Construction
Aluminum
Number of Mounting Holes
None
Item
Electronic Level
Characteristics
Magnetic Bottom, Backlight, Absolute level
Type
Electronic Digital
Number of V-Grooves
0
Frame Material
Aluminum
Number of Magnets
1
Magnet Type
Neodymium
Measuring Units
Degrees
Vial Illumination
Backlight
Preset Angles
90 Degrees
Accuracy - Standard
0.1 Degrees (=.021in/ft)
Accuracy - Other Angles
+/-0.20 Degrees
Number of 30 Vials
0
Number of 45 Vials
0
Operating Temperature - Minimum
-5 Degrees C
Magnetic
Magnetic
Measurement Functions
Level
Includes Batteries
Batteries Included
Accuracy - 0 and 90
+/-0.10 Degrees
Accuracy - Inverted
0.1 Degrees (=.021in/ft)
Measuring Range - Maximum
90 Degrees
Resolution
0.1 Degrees
Use Location
Indoor, Outdoor
Measuring Range - Minimum
0 Degrees
Operating Temperature - Maximum
122 Degrees F
End Cap Type
No End Caps
Number of Hand Grips
0

Description

Electronic Level, Measuring Range - Maximum 90 Degrees , Measuring Range - Minimum 0 Degrees , Magnet Type Neodymium, Number of Magnets 1, Accuracy - Other Angles +/-0.20 Degrees , Overall Length 2 3/8 in, Battery Size AAA, Includes Batteries Batteries Included, Accuracy - 0 and 90 +/-0.10 Degrees , Frame Material Aluminum, Preset Angles 90 Degrees , Total Number of Vials 0, Accuracy - Inverted 0.1 Degrees (=.021in/ft), Accuracy - Standard 0.1 Degrees (=.021in/ft), Color Green
