Shop STARRETT

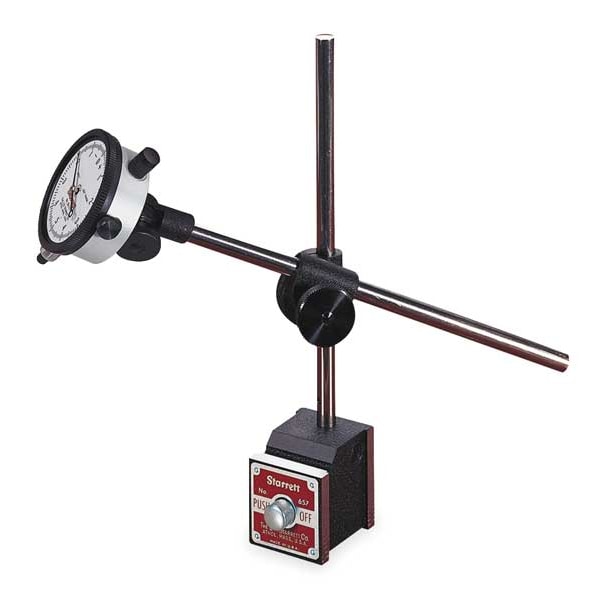

Indicator, 0 to 0.125 In, 0-25-0

  • Mfr # 657EZ

  • Zoro # G4745991

product price:
$
709.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
0 in to 0.125 in
Features
Three Precision Ground Magnetic Contact Surfaces; Powerful, Permanent Magnetic Base Holds Firmly to Steel or Iron Surfaces Horizontally, Vertically, Upside-Down; The Swivel Post Assembly on these Holders Provides Universal Adjustment in Both Horizontal and Vertical Planes; With Finished Wood Case
Accuracy
+/- 0.0005 in
Resolution
0.0005 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
657EZ
Zoro #
G4745991
UPC #
049659527513
Country of Origin
United States

Dimensions

Contact Point Dia.
1/4 in
Dial Size
2.5 in
Dimension Type
Inch
Base Height
1.89 in
Base Size
1.89 in L X 1.625 W X 1.89 in H
Base Width
1.625 in
Base Length
1.89 in

Details

Graduations
0.0005 in
Range
0 in to 0.125 in
Features
Three Precision Ground Magnetic Contact Surfaces; Powerful, Permanent Magnetic Base Holds Firmly to Steel or Iron Surfaces Horizontally, Vertically, Upside-Down; The Swivel Post Assembly on these Holders Provides Universal Adjustment in Both Horizontal and Vertical Planes; With Finished Wood Case
Accuracy
+/- 0.0005 in
Resolution
0.0005 in
Includes
Magnetic Base and Upright Post Assembly, With Inch Reading Indicator 25-131J, with case
Indicator Style
Plunger
Reading
Balanced
Bearing Type
Plain
Series
657
Dial Reading
0-25-0
AGD No.
AGD 2
Range per Revolution
0.050 in
Item
Dial Indicator & Mag Base Set
Dial Color
White
Long Form Calibration Certificate
No
Bezel Lock
No
Back Type
Lug
Standards
AGD
Minimum Measurement - Inch
0 in
AGD Number
AGD 2
Case Type
Wooden
Includes Case
Yes
Maximum Measurement - Inch
0.125 in
Maximum Reach
9.5 in
Included Base manufacturer Model No
657D
Arm Type
Articulating
Compatible Indicator Mounts
Lug
Included Certification
Certificate of Inspection
Included Indicator Manufacturer Model No
25-131J
Included Indicator and Base
25-131J (657D)
Test Indicator Style
Horizontal, Vertical
Step Type
1
Base Type
Magnetic
Holding Power
125 lbf
Includes Snug
No
Magnet Type
Permanent
Operation Type
Mechanical
Product Type
Dial Indicator & Mag Base Set
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.125 in

Description

Magnetic Base, Range 0.125 In., Range per Revolution 0.050 In., Dial Reading 0-25-0, Magnetic Pull (Lb.) 100, Base Size (In.) 1 15/16 W x 1 5/8 D x 1 7/8 H, Finish Black, Features On/Off Switch, Includes Indicator, Magnetic Base w/Upright Post Assembly, and Wood Case
